Home Products Blackjack Tower mid-size servers

Share this Product!

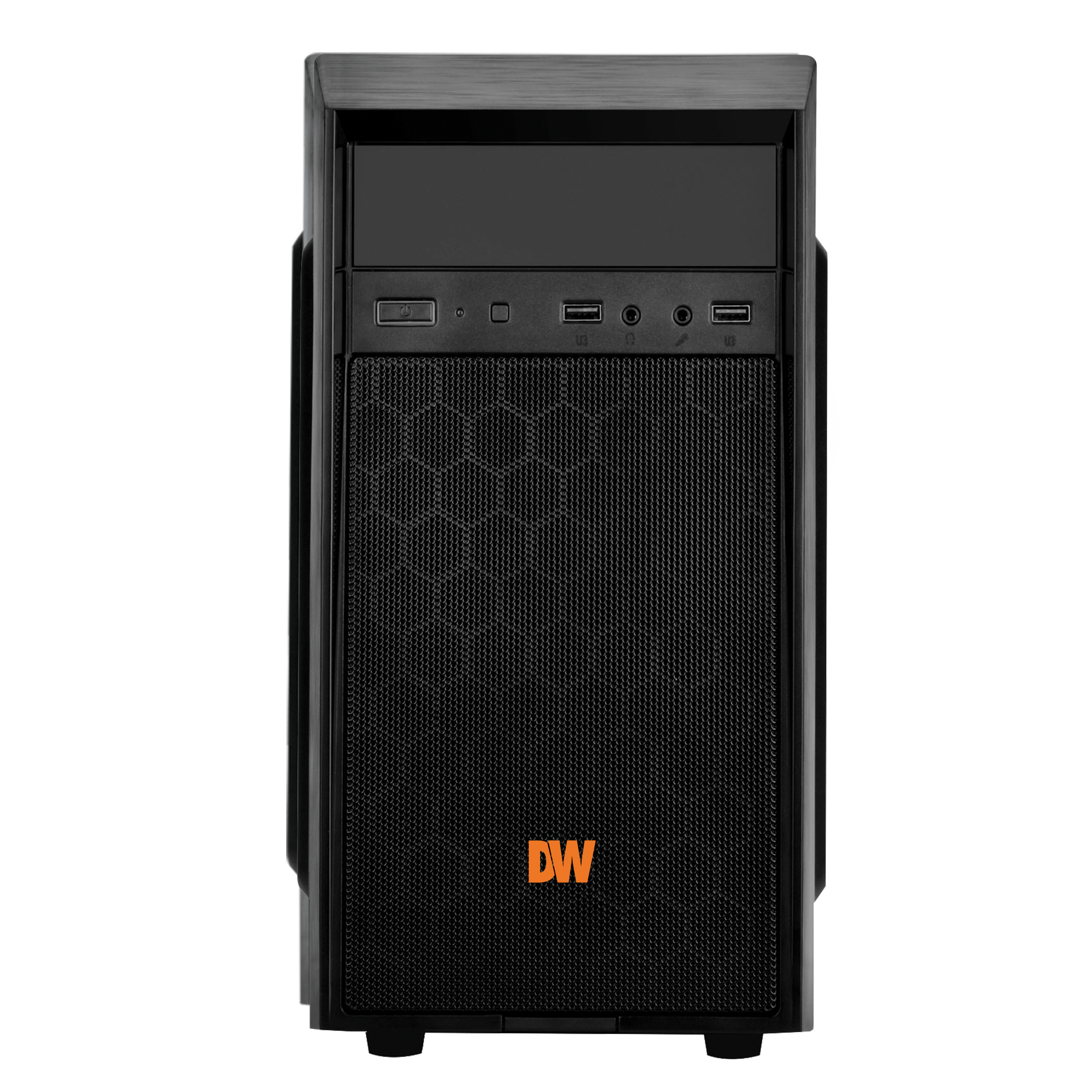

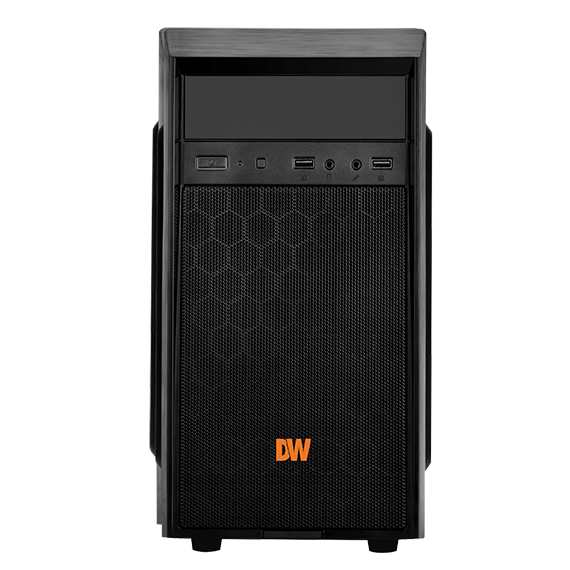

Blackjack Tower mid-size servers
Model: DW-BJST51xxT
Find a Reseller | Request a Demo | Contact Us

Blackjack® Tower™ mid-size server is a reliable and high-performance solution for viewing, monitoring and recording multiple IP cameras of any resolution at up to 360Mbps throughput. The server is NDAA/TAA compliant and includes Windows 10® OS, an Intel® i5 processor, dual network cards and local true HD, DVI and VGA outputs. The server comes preloaded with DW Spectrum® IPVMS and four (4) complimentary recording licenses, provides up to 18TB internal storage, is ONVIF conformant and comes with a 5 year limited warranty.

All Blackjack® Tower servers come with one (1) DW-SPECTRUMLS004 4-channel license included.
For additional license part numbers click here


  • Blackjack Tower mid-size

Max throughput and IP camera support
This Blackjack® server can record and manage single-sensor and multi-sensor IP cameras of any resolution up to of 360Mbps throughput.
Dual network cards
Optimize network bandwidth by utilizing dual network ports, to build a separate network for the surveillance system and keep that traffic off the main network, reserved for the NVR’s communication.
DW Spectrum® IPVMS
DW Spectrum® IPVMS is an endlessly customizable IP Video Management platform that gives users the ability to create tailored network video solutions for any type of project, from the office or on in the field.
Designed and commissioned in the U.S.A
All DW recorders, workstations and NAS devices are designed, assembled and inspected in our California facility. Each product undergoes multiple levels of quality control to guarantee the highest quality and performance.
  • Supports all ONVIF conformant IP cameras
  • Up to 18TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 360Mbps throughput
  • 1 x true HD, 1 x DVI, 1 x VGA, 1 display output at a time
  • Dual network ports
  • Windows 10® OS
  • USB interface
  • Hosting DW Spectrum® for setup, configuration, monitoring
  • and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) 4-channel license included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual-stream recording
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • NDAA/TAA compliant
  • 5 year limited warranty
MODELS
 DW-BJST51xxT
Included IP licenses
 4
Form factor
 Mid-size tower
Operating system
 Windows® 10
CPU
 Intel® i5® processor
Memory
 16GB
Ethernet port
 2 x 1Gigabit Ethernet (RJ45)
System
Max video storage rate (Mbps)
 360 Mbps
Storage
Maximum SSD and HDD 3 x 3.5 SATA HDD
Maximum storage
 18TB
USB interface Yes
Video-out
Outputs
1 x true HD, 1 x DVI, 1 x VGA. Maximum 1 display output at a time
Video card
Onboard Intel graphics
Preloaded VMS software
DW Spectrum® IPVMS
Remote clients
Cross-platform - Windows®, Linux Ubuntu® and Mac®
Mobile apps
iOS® and Andriod®
Keyboard and mouse
Included
Power supply
400W**
Operating temperature (ambient room temperature)
41°F~104°F (5°C~40°C)
Operating humidity
20~90% RH
Dimension (WxDxH)
7.46” x 15.7” x 14.21” (189.52 x 398.8 x 631.02 mm)
Warranty
5 year limited

** A UPS is recommended

Part Number

Description

DW-BJST513T
Blackjack Tower, 3TB
DW-BJST514T
Blackjack Tower, 4TB.
DW-BJST516T
Blackjack Tower, 6TB.
DW-BJST519T
Blackjack Tower, 9TB.
DW-BJST5112T
Blackjack Tower, 12TB.
DW-BJST5118T
Blackjack Tower, 18TB.
DW Spectrum IPVMS Licensing Options

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum® IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004
Four (4) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010
Ten (10) DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020
Twenty (20)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS050
Fifty (50)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100
One Hundred (100)  DW Spectrum® IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004
Single DW Spectrum® IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16,  No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum® IPVMS Video Wall License - 1 Operator, 2 Monitors,  No Annual Renewal, No Upgrade Required.
DW Spectrum® IPVMS
LEARN MORE
MEGApix® IP cameras
LEARN MORE
Blackjack® NAS
LEARN MORE
Blackjack® servers
LEARN MORE
DW Spectrum Mobile (for v2.5 and Higher)
DW Spectrum Mobile
DW Site Viewer™
DW Site Viewer™ for Apple TV
Title Type Size Download
Blackjack Tower quick setup guide pdf 3.37 MB
DW-BJST51xxT AE specifications doc 0.11 MB
DW-BJST51xxT CAD drawing dwg 0.17 MB
DW-BJST51xxT datasheet pdf 0.54 MB
DW-BJST51xxT sell sheet pdf 1.12 MB
