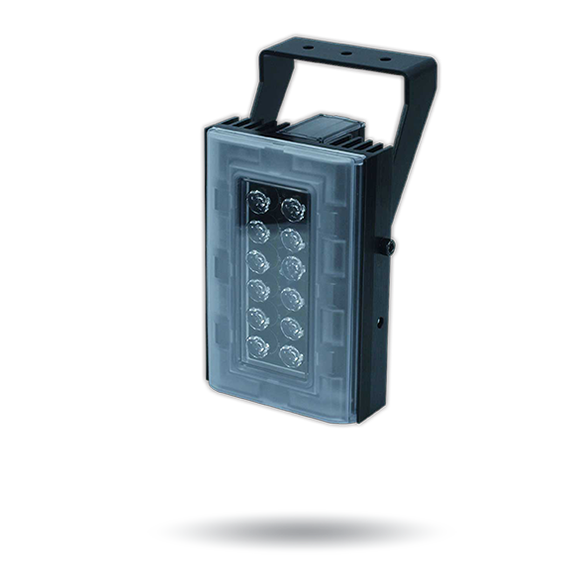

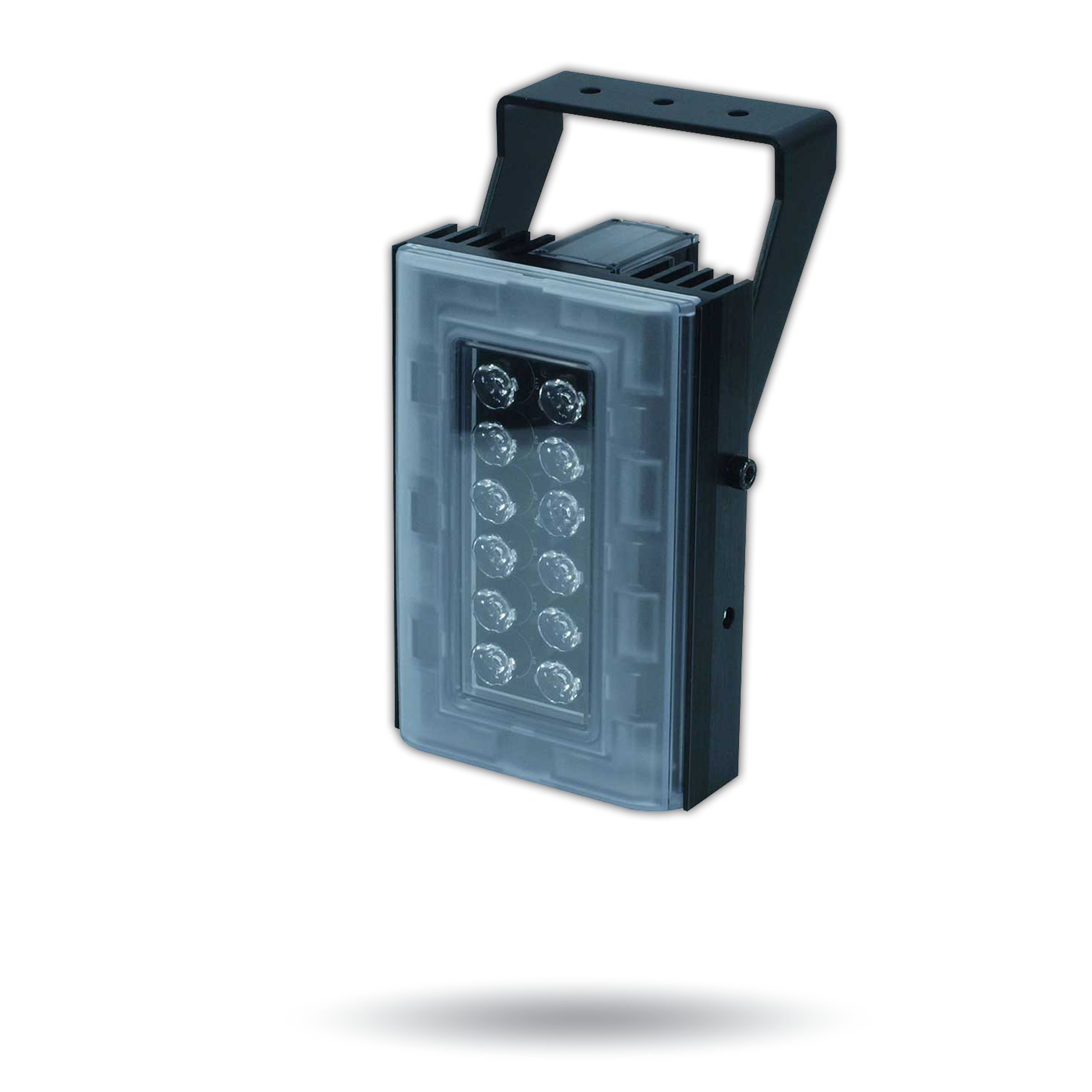

NightWatch™ IR and White Light LED IP-enabled hybrid illuminator

Share this Product!

Model: DW-ILHYBIP940, DW-ILHYBIP850

Find a Reseller | Request a Demo | Contact Us

The DW-ILHYBIP850 and DW-ILHYBIP940 are NDAA/TAA compliant IP-enabled infrared (IR) and white light (WL) LED outdoor illuminator. The hybrid illuminator incorporates the latest surface mount Dual-Core^® LEDs, combined with enhanced optical output and outstanding reliability to provide users with a smart concealed and deterrent lighting solution for a wide range of applications.

The illuminator’s front window is coated in CleanView™ hydrophobic coating to repel dust and water and includes an interchangeable lens pack to deliver a variety of angles out of the box providing users the flexibility to create different elliptical beam profiles.

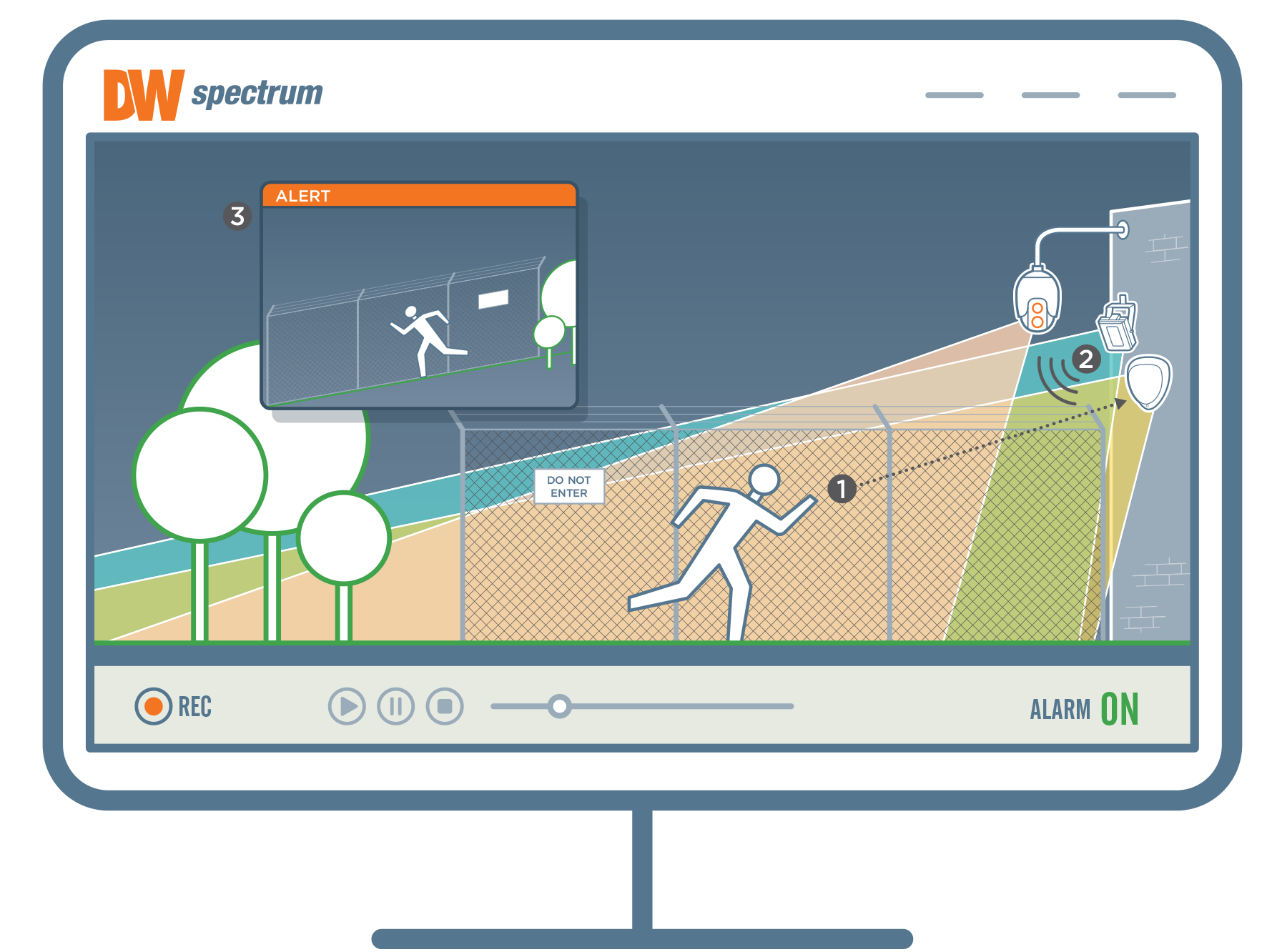

NightWatch™ illuminators and SiteWatch™ detectors

When the detectors detect motion, the illuminators can be programmed to turn on, and cameras can be activated to record. All devices can be controlled via DW Spectrum^® IPVMS.

Amplify panoramic surveillance

Combine detectors and illuminators with MEGApix^® Pano™ multi-sensor and hemispheric fisheye cameras to create a formidable panoramic solution.

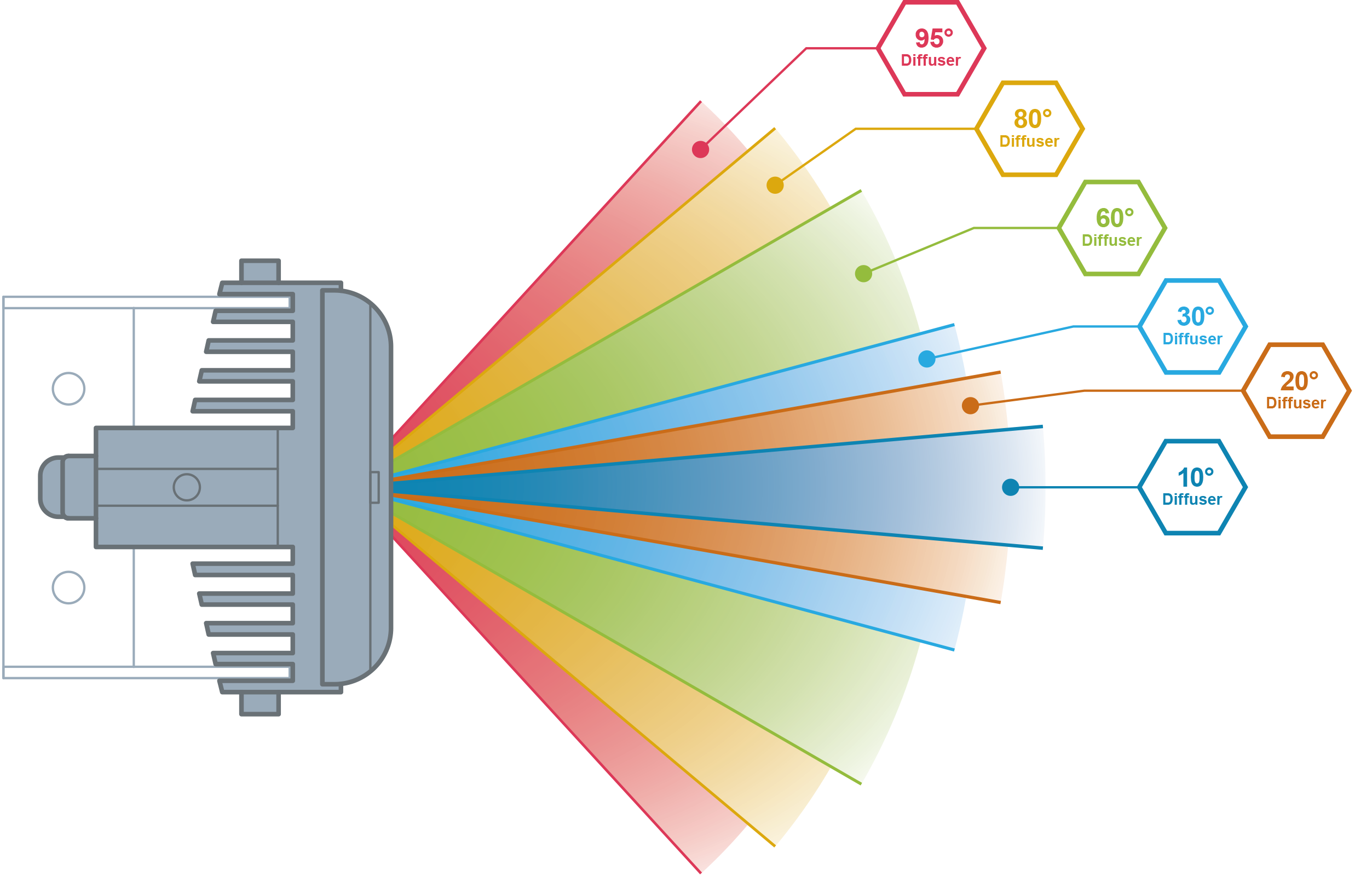

Interchangeable lens diffuser kit

Each NightWatch™ illuminator is supplied with an interchangeable lens diffuser kit, allowing installers to easily change the angle of illumination and align perfectly with the camera’s field of view.

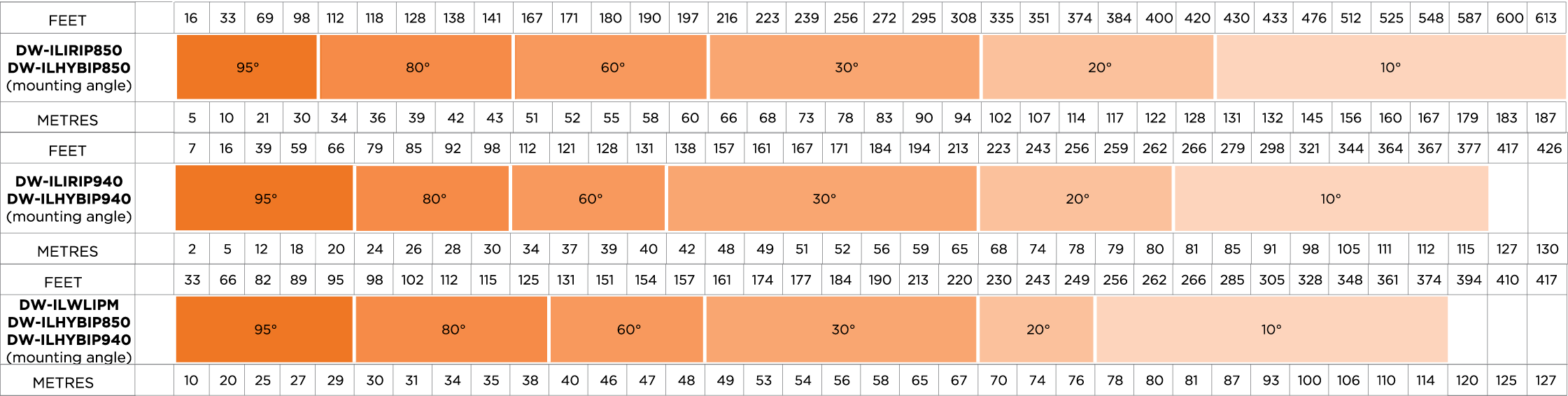

NightWatch™ Illuminating distances

The NightWatch™ infra-red and white-light illuminators incorporate the latest surface mount Dual-Core™ LEDs, combined with enhanced optical output and outstanding reliability at a variety of distances and wavelengths.

Hybrid Infrared and white light LED illuminator
Interchangeable lens pack for a variety of angles out of the box
Direct integration with DW Spectrum® IPVMS
Create different elliptical beam profiles
Motion-activated
CleanView hydrophobic coating repels water, dust and grease
Activate white light to deter intruders
Remotely adjustable photocell and illumination levels
850nm IR wavelength (DW-ILHYBIP850)
940nm IR wavelength (DW-ILHYBIP940)
Ultra-white ≈ 6000K white light
66-614ft IR coverage
94-374ft white light coverage
Vibration/knock sensor
Web interface built-in
High-power Dual-Core LED’s with advanced, current limited and integral control circuitry
NDAA/TAA compliant
IP66 environmental-rated dust-tight and water-resistant
IK 09-rated impact-resistant

Specifications	DW-ILHYBIP850	DW-ILHYBIP940
Photocell	Software adjustable 20 - 70 lux
Illumination	Software adjustable 10% - 100%
Operating temperature	-58° to 140°F (-50° to 60°C)
Input	PoE+ (IEEE802.3at)
Power consumption	26W
Recommended PSU	Any IEEE 802.3at injector (not included)
IP rating	IP66-rated in accordance with IEC/EN 60529
IK rating	IK09 impact-resistant in accordance with IEC/EN 62262
Electronics	High-efficiency surface mount high power Dual-Core LED’s with advanced current limited integral control circuitry
Remote access	Web browser user interface. No software or installation needed
WL wavelength
WL Lumen output	1800lm
WL Color temperature	Ultra-white ≈ 6000K
WL Color rendering index	>70
IR wavelength	850nm (semi-covert). Faint red glow	940nm (covert). Minimal visible glow
Coverage distance	614’ (187m)	374’ (115m)
Sock sensor and pressure equalization vent	Prevents thermal expansion and pressure cycling
Certification	CE, FCC Class B
Materials	Robust high-quality aluminum extrusion, black anodized finish
Front window	Polycarbonate high transmission with CleanView™ technology
Dimensions	6.34” x 4.33” x 3.07” (161 x 110 x 78mm)
Weight	3 lbs (1.35 kg)
Mount	Powder-coated stainless steel wall mount (included)
Warranty	2 year warranty

DW-ILWM1

Mounting bracket for NightWatch™ illuminators

DW-ILWM2

Mounting bracket for NightWatch™ illuminators

DW-ILWM3

Mounting bracket for NightWatch™ illuminators

DW-ILPM1

Pole mount bracket for NightWatch™ illuminators
