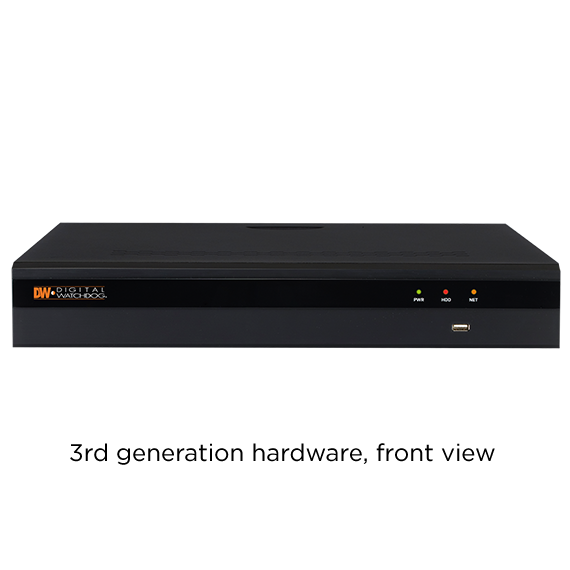

VMAX® IP Plus™ 8-channel PoE NVR with 4 virtual channels

Share this Product!

Model: DW-VP12xT8P

Find a Reseller | Request a Demo | Contact Us

The VMAX^® IP Plus™ is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! The NVR offers unique features such as CCIP™ camera encryption and internal systems diagnostics, keeping your system healthy, secure and up to date. Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Combine your VMAX IP Plus with DW Spot™ Monitoring Modules for public view monitors. Each NVR can support up to 16 remote connections and share a maximum of 64 channels simultaneously.

Available with 8 PoE ports (expandable to 12 cameras by adding an external PoE switch), the NVRs can record and manage single-sensor IP cameras up to 4K resolution with 80Mbps throughput (3rd generation model) or 5MP resolution with 80Mbps throughput (2nd generation model).

Recommended app: VMAX^® Plus App
To download the app, search ‘DW^®’ or 'VMAX Plus' in the Google Play Market or Apple App Store or click any of the links below:

Complete installation, set up and camera configuration in under three minutes!
CCIP™ system encryption protects your surveillance system from out of network attacks
Record and manage single-sensor IP cameras up to 4K (3840×2160), with 80Mbps maximum throughput*
Local power for up to 8 IP cameras via resident PoE switch
DW Witness™ turns a smartphone or tablet into an additional surveillance camera
PathFinder™ Peer-to-Peer (P2P) remote connection
Automatic device discovery
Control any ONVIF camera’s set up and features remotely
0TB-24TB storage options
Snapshot Notify™: camera notifications sent to an email or CMS
C3™ CMS and event server software up to 144 Channels
Event notifications via email, text and C3™ CMS and push notifications to mobile devices
Mobile application for iPhone, iPad, iPod, Android smartphones and tablets and Apple TV
Dual-stream recording
Easy drag and drop camera management
Instant backup during playback
Full HD output for local live and playback display up to 4K (3840×2160)
Complete system analysis with real-time system, network and PoE status monitoring
True HD and VGA simultaneous output support
4 sensor input, 1 alarm relay output
Transaction verification via TCP and USB-serial
Email event notifications with video clip
Simple and free DDNS support for remote management
Easy web-based client with multi-user access
Advanced H.264 Linux embedded NVR
Simultaneous live, playback, recording, back-up and network
NVR health check with email notification
NVR calculation and auto-recording configuration
Help menu on major functions
Auto or manual firmware upgrade available
Automatic private IP addressing
NTP (network time protocol)
Screen saver to protect monitor screen
Import/export configuration between multiple NVRs
USB mouse and GUI control
5 year limited warranty
Note: ONVIF conformant fisheye cameras will be recognized in VMAX IP Plus NVRs, but image dewarping capabilities are not included.

		2nd generation HW	3rd generation HW
Operating system		Embedded Linux^®
System	Channel	12 Channel (DW-PVX16W multi-sensor IP camera uses 4 channels in the recorder, one per sensor).
	No. of PoE	8 Ch
	Max supported resolution	IP camera max. 5MP (2592 x 1920), fisheye dewarping not supported	IP camera max. 4K (3840×2160)
	Communication protocol	ONVIF^®
	PoE type	1Gbps, 802.3af
Display	Speed	360fps
	Screen mode	1, 4, 9 and 12
Video-out	Monitor	True HD and VGA
	resolution	True HD output: 800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080	1024x768, 1280x720, 1280x1024, 1920x1080, 2560x1600, 3840×2160 (4K)
Recording speed		Up to 360fps up to 5MP resolution	Up to 360fps up to 4K resolution
Max. throughput		80 Mbps
Max. HDD bay		2 x SATA HDD	4 x SATA HDD
Recording resolution		Dual-stream
Recording modes		Continuous, C+M, C+S, scheduled, sensor and motion detection recording
		Pre-alarm recording, emergency recording, quick backup
Playback and search	Speed	x1, x2, x4, x8, x16, x32, x64, x100
	Function	Intelli-search by time bar, calendar (date and time) and event search
Audio output		1 Ch
Alarm input/relay output		4 Ch/ 1 Ch
PTZ control		RS-485, ONVIF
Transaction verification		TCP and USB-serial interface
LAN		1x gigabit ethernet (RJ45) – fixed IP, DHCP and DDNS
Access		Web viewer: Live, playback and configuration up to 10 multiple connections
		Client monitoring software: Mac® (Apple® S/W), C3™ (CMS S/W)
Backup device		Local backup by USB, network backup by CMS
System recovery after power failure		Auto-reboot and journaling file system
Other function	Firmware upgrade	FTP, USB
	Back-up	Remote, USB
	Special features	Local PoE switch Quick Setup under 3 minutes Snapshot Notify™: Programmable interval camera image verification sent to an email Event notifications via email, text and C3™ CMS and push notifications to mobile devices Real-time temp alert Digital Zoom in live and playback
	Health check	Real-time system, network and PoE status monitoring
System operation		IR remote controller (optional), USB mouse, PTZ control by keyboard (optional)
Power requirements		48V DC	110~240V A/C
Total PoE Power Budget		---	150W
Max. Power per Port		---	30W
Power consumption		158.4W total power budget, 3.3A, 15.4W per PoE channel	360 W total power budget, 5.5A, 18.75W per PoE channel (simultaneous)
Operating temperature and humidity		41~104 °F (5~40 °C) / 20~90% RH
Dimension (WxDxH)		14.21 x 14.96 x 2.6 Inch (361 x 380 x 66 mm)	17.32” x 15.66” x 2.79” (440 × 397.8 ×71 mm), 1.5U
Certification		CE, FCC, KCC, WEEE, RoHS
Warranty		5 year limited

Model #	Supported Cameras	Storage Size
DW-VP128P	Up tp 12 IP cameras	No local storage
DW-VP122T8P	Up to 12 IP cameras	2TB
DW-VP123T8P	Up to 12 IP cameras	3TB
DW-VP124T8P	Up to 12 IP cameras	4TB
DW-VP126T8P	Up to 12 IP cameras	6TB
DW-VP128T8P	Up to 12 IP cameras	8TB
DW-VP1212T8P	Up to 12 IP cameras	12TB
DW-VP1218T8P	Up to 12 IP cameras	18TB
DW-VP1224T8P	Up to 12 IP cameras	24TB
