HD-SDI™ 2.1 Megapixel Snapit™ Indoor/Outdoor Dome Camera with IR

Share this Product!

Model: DWC-HV421TIR

Find a Reseller | Request a Demo | Contact Us

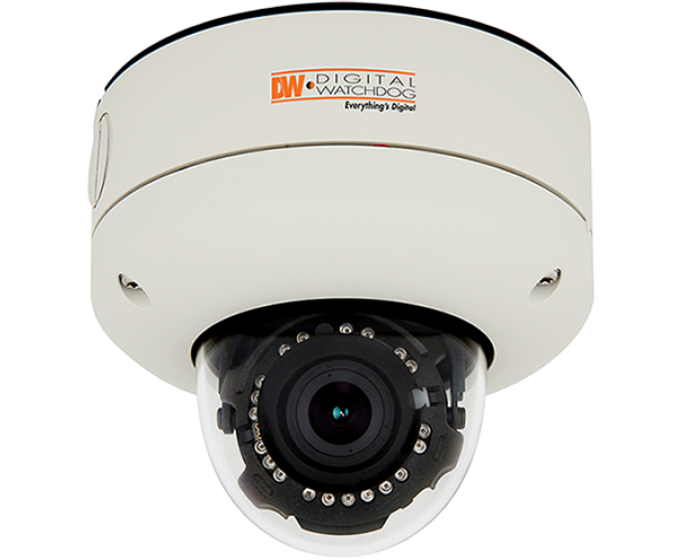

The HV421TIR is a 2.1 megapixel vandal dome camera with HD-SDI 1080P output. The camera outputs the clearest high definition images with its 1/2.8” CMOS sensor and features like 3D Digital Noise Reduction and Wide Dynamic Range. The command via coaxial cables offers the unique ability to control and configure the camera remotely from DW^®’s VMAXHD DVR. Our simple to install housing series combined with our reliable camera technology series gives you a high quality camera in just a few minutes.

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

3D DNR (Digital Noise Reduction)
BLC - Backlight Compensation
D/N - Day/ Night: True
Easy Icon Driven OSD Menu with Built-in Joystick
HME - Highlight Masking Exposure
IR Distance: 70ft Range Smart IR
Junction Box Built-in
Lens: 3.6~15mm Remote Auto Focus
NEMA RATING: IP68 (Protects against dust and immersion beyond 3ft.)
Programmable Privacy Zones: 30 Programmable Zones
Resolution: Highest Resolution 2.1 Megapixels (HD-SDI)
Secondary Video - BNC Output: Included
Star-Light™ (Super Low Light Technology)
WDR- Wide Dynamic Range

Image Sensor		1/2.8" CMOS
Minimum Illumination		0.00 Lux
Resolution		2.1MP, 1080P (Color) 1080P (B/W)
S/N Ratio- Signal to Noise Ratio		50dB (AGC off)
Synchronization		Internal
Total Pixels (H X V)		2000 (H) x 1241 (V)
Video Output		HD-SDI
Lens
Focal Length		3.5-16mm
IR Distance		70ft Smart IR
Lens Type		Remote Auto Focus
Zoom		4.5x Optical Zoom
Mechanical
Dimensions		139 X 118.8 mm (5.47 X 4.7 in)
Housing Material		Aluminum
Housing Type		Snapit Vandal Dome
Warranty		2 Years
Weight		2.05 lbs
Operational
3D DNR	3D Digital Noise Reduction	OFF / LOW / MIDDLE / HIGH
AGC	Auto Gain Control	ON/OFF
AWB	Auto White Balance	AUTO / AUTO_H / AUTO_l / PRESET / MANUAL / AUTO_EXT
BLC	Backlight Compensation	ON/OFF
Brightness		0~20
D/N	Day/ Night	Auto, Day (Color), Night (B/W)
DSS- Digital Slow Shutter		OFF / X2 / X3 / X4
HME	Highlight Masking Exposure	ON/OFF
Programmable Privacy Zones		30 Zones
Sharpness		0~10
Starlight™ (Super Low Light Technology)		ON/OFF
WDR	Wide Dynamic Range	ON/OFF
Environmental
Operating Humidity		Less than 90% (Non-Condensing)
Operating Temperature		-29°C ~ 55°C (-20.2°F ~ 131°F)
Power Consumption		2.0W, 166.7mA / LED ON 3.5W, 291.7mA
Storage Temperature		-29°C ~ 70°C (-20°F ~ 158°F)
Voltage		12VDC
