MEGApix IVA™ 8MP ultra-wide view single-sensor bullet IP camera with 2.3mm fixed lens with color in near-total darkness and IR

Share this Product!

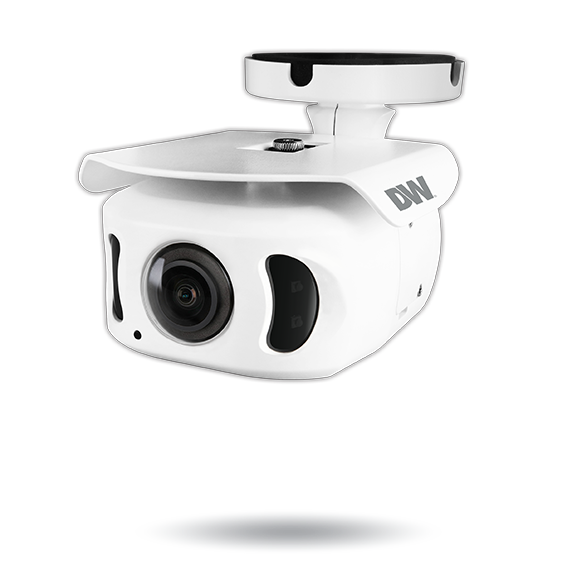

8MP ultra-wide view single-sensor IP bullet camera with IVA

Model: DWC-MBW8Wi2TW

Find a Reseller | Request a Demo | Contact Us

This MEGApix^® 8MP ultra-wide view single-sensor bullet IP camera is NDAA/TAA compliant and can deliver real-time 30fps crystal-clear video with a 2.3mm ultra-wide view lens for wide-area situational awareness at an exceptional short focal length. The camera’s unique lens provides edge-to-edge image clarity without pixel loss. The camera comes pre-loaded with IVA analytics engine to detect and classify people and vehicles in real-time.

Additional features include Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition, true WDR, Smart IR™ LEDs and simultaneous H.265/H.264/MJPEG codec support. The IP67 vandal- and weather-resistant bullet housing can be used for both indoor and outdoor installations. It’s unique focal length is suitable for narrow corridor installations, with clear images as close as 19.5~23.5 inches from the camera.

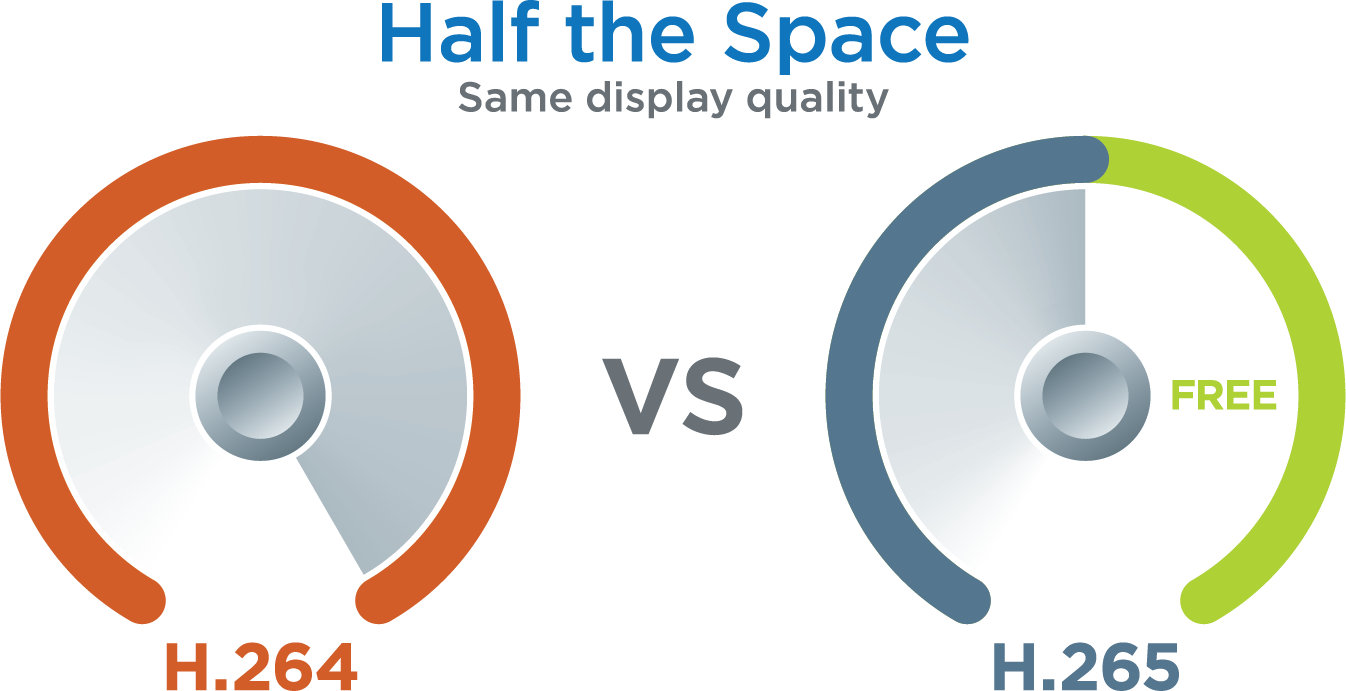

H.265 codec support

High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.

IVA Analytics

MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced video content analysis detection capabilities.

LEARN MORE

Star-Light Plus™ color in darkness technology

Star-Light Plus™ color in near-total darkness technology provides crisp, clear images in the absence of ambient light.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

8MP 1/1.8” image sensor at real-time 30fps
Star-Light Plus™ color in near-total darkness technology
Intelligent Video Analytics (IVA)
Extended Intelligent Video Analytics (IVA+ license required)
Seamless integration and control of IVA rules with DW Spectrum® IPVMS
2.3mm ultra-wide lens
True wide dynamic range (WDR)
Triple codecs (H.265, H.264, MJPEG) with simultaneous dual-stream
100’ Smart IR™ with intelligent camera sync.
Smart DNR™ 3D digital noise reduction
True day/night with mechanical IR cut filter
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
Two-way audio
Micro SD/SDHC/SDXC class 10 card slot (card not included)
Alarm sensor input
Relay output
Web server built-in
PoE Class 3 and DC12V
ONVIF conformant, profile S
NDAA/TAA compliant
IP67 dust-tight and waterproof to 1 meter
5 year warranty

Image sensor	8MP 1/1.8” CMOS
Total pixels	3952 (H) × 2320 (V)
Active pixels	3840 (H) x 2160 (V)
Minimum scene illumination	0.29 lux (color)
Minimum scene illumination	0.0 lux (B/W)
Video output	Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
S/N ratio	50dB
LENS
Focal length	2.3mm, F2.8
Lens type	Ultra-wide angle lens
HFoV / VFoV	175° / 80°
IR distance	100ft range
I/O
Audio in / out	1/1
Audio compression	G.711
Alarm in / out	1/1
OPERATIONAL
Intelligent Video Analytics	IVA license: intrusion, line crossing, counting line, loitering, enter, exit, tamper
Intelligent Video Analytics	IVA+ license: object removed, tailgating, direction, stopped, appear, disappear, object left
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/15 ~ 1/32,000
Slow shutter	1/2,1/3,1/5,1/6,1/7.5, 1/10
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	3D DNR
Wide dynamic range (WDR)	True WDR (T-WDR)
Wide dynamic range (WDR) dB	120dB
Privacy zones	16 programmable privacy masks
Mirror and flip	Yes
Alarm notifications	Notifications via e-mail, FTP, alarm output activation and SD card recording
Memory slot	Micro SD / SDHC / SDXC (card not included)
NETWORK
LAN	RJ45 (10/100Base-T)
Video compression type	H.265, H.264, MJPEG
Resolution	H.264: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF H.265: QFHD, 2.1MP/1080p, 720p, VGA, D1, CIF MJPEG: 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
Frame rate	Up to 30fps at all resolutions
Video bitrate	100Kbps ~ 10Mbps, Multi-rate for Preview and Recording
Bitrate control	Multi-streaming CBR/VBR at H.265 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP/IP, UDP, AutoIP, RTP (UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3 (MIB-2), ONVIF
Security	HTTPS (TLS), IP filtering, 802.1x, digest authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows^®, Mac^® OS, Linux^® Browser: Internet Explorer^®, Google Chrome^®, Mozilla Firefox^®, Safari^® NOTE: Chrome browser is recommended for IVA configuration.
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP67-rated
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC12V, PoE IEEE 802.3af Class 3 (Adapter not included)
Power consumption	DC12V: max 8.9W PoE: max 12.3W
MECHANICAL
Material	Aluminum bullet housing
Dimensions	5.03" x 8.75" x 3.8" (127.9 x 222.5 x 96.7mm)
Weight	2.13 lbs (0.97kg)
Warranty	5 year warranty
