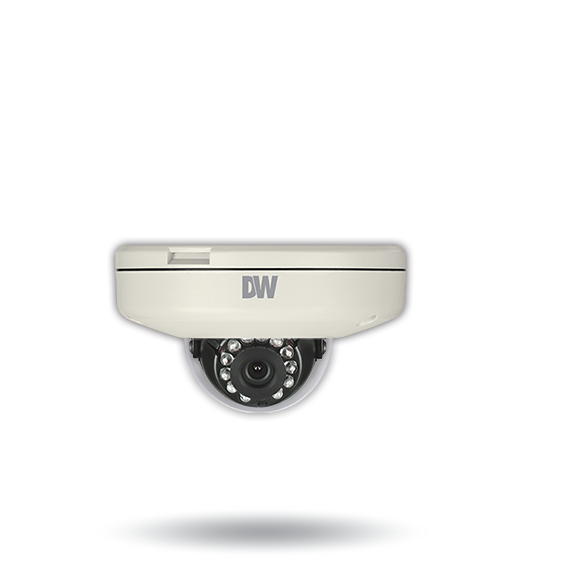

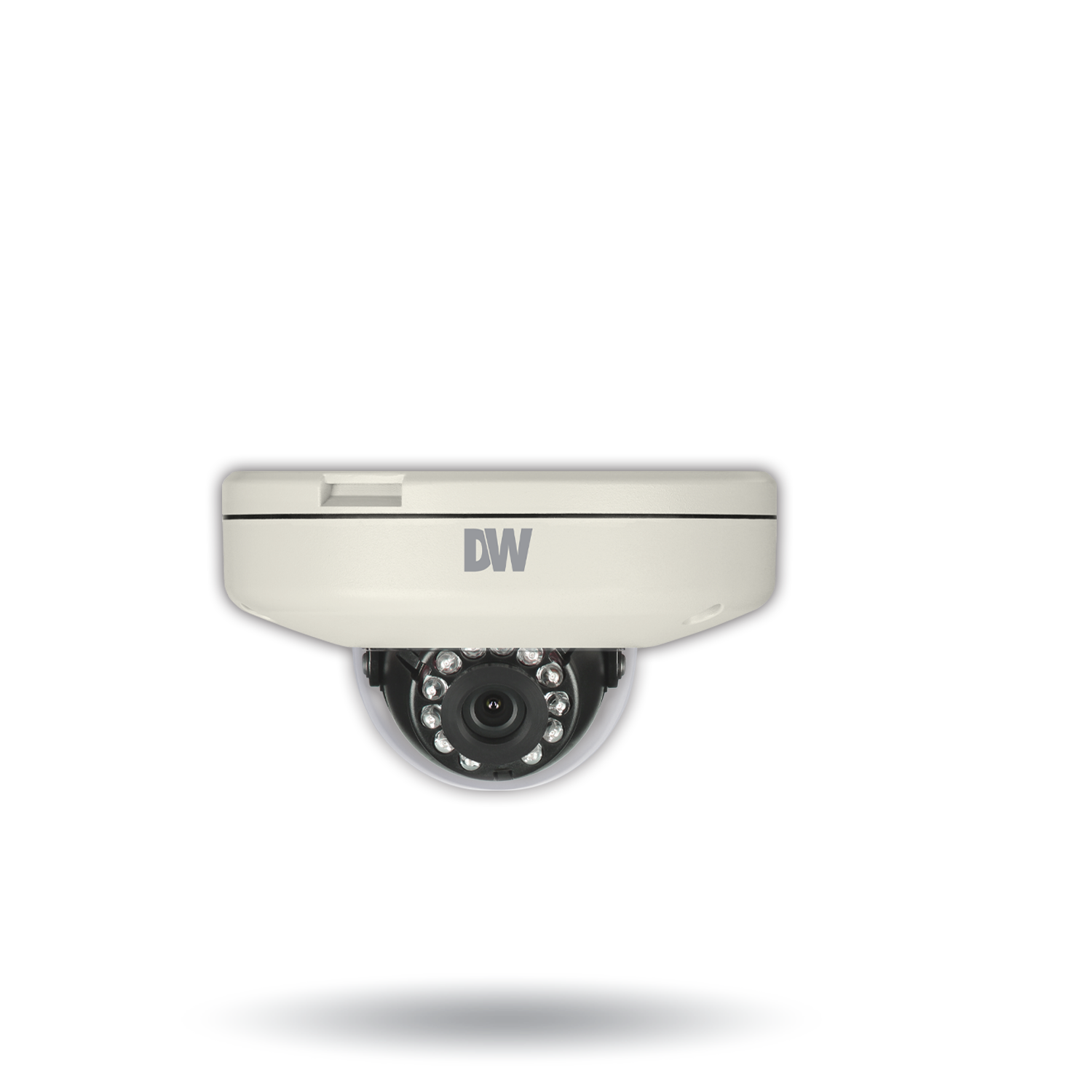

MEGApix® 2.1MP/1080p ultra low-profile vandal dome IP camera with 4.0mm and fixed lenses and DMP integration and IR

Model: DWC-MF21M4TIRDMP

Find a Reseller | Request a Demo | Contact Us

The DMP^® series of MEGApix^® IP cameras are seamlessly integrated into a DMP alarm panel, providing visual verification and data for alarms triggered in the DMP system. The cameras are easily integrated into any DMP existing system via the cloud, delivering a simple installation process and the added power of crystal-clear 2.1 Megapixel 1080p resolution images.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

2.1MP/1080p 1/2.7" image sensor
4.0mm fixed lens
DMP integration
True Wide Dynamic Range (WDR)
Dual codecs (H.264, MJPEG) with simultaneous streaming
50' Smart IR™ with intelligent camera sync.
Ultra low-profile indoor/outdoor vandal dome camera housing
Smart DNR™ 3D digital noise reduction
True day/night mechanical IR cut filter
Auto gain control (AGC)
Auto white balance (AWB)
Motion detection
PoE class 2 and DC12V
ONVIF conformant, profile S
NDAA/TAA compliant
IP66 certified weather and tamper resistant
IK10-rated impact resistant
5 year warranty

Image sensor	2.1MP/1080p 1/2.7“ CMOS
Total pixels	1928 (H) x 1088 (V)
Minimum scene illumination	0.41 lux (color)
Minimum scene illumination	0.0 lux (B&W)
Video output	Local video output CVBS 1.0V p-p (75?), 4:3 aspect ratio
LENS
Focal length	4.0mm F2.0
Lens type	Fixed lens
Field of view (FoV)	88°
IR distance	30ft range
OPERATIONAL
Shutter mode	Auto, manual, anti-flicker, slow shutter
Shutter speed	1/30 ~ 1/8000
Slow Shutter	1~1/5,1/7.5, 1/15
Auto gain control	Auto
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	0 ~ 11
Wide dynamic range (WDR)	on, off
Wide dynamic range (WDR) dB	120dB
Backlight Compensation (BLC)	On / off / HSBLC
Mirror & Flip	Yes
Alarm notifications	Notifications via e-mail, FTP server
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.264
Resolution	1080p/720p/VGA/D1/CIF
Frame rate	Up to 30fps
Video bitrate	100Kbps ~ 10Mbps, Multi-rate for preview and recording
Bitrate control	Multi-streaming CBR/VBR at H.264 (controllable frame rate and bandwidth)
Streaming capability	Dual-stream at different rates and resolutions
IP	IPv4
Protocol	ONVIF, TCP/IP, UDP, autoIP, RTP(UDP/TCP), RTSP, NTP, HTTP,HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2c/v3(MIB-2)
Security	HTTPS(TLS), IP filtering, 802.1x, digest authentication (ID/PW)
ONVIF conformance	Yes
Video management software	DMP
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	Less than 90% (non-condensing)
IK rating	IK10 impact resistant
IP rating	IP66 certified weather and tamper resistant
Other certifications	CE, FCC, RoHS
ELECTRICAL
Power requirement	DC 12V, PoE (IEEE 802.3af Class 3). (adaptor not included)
Power consumption	DC12V: max 5.2W PoE: max 7.1W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate dome
Dimensions	4.9" x 2.9" (125 x 74.3 mm)
Weight	1.54 lbs (0.7kg)
