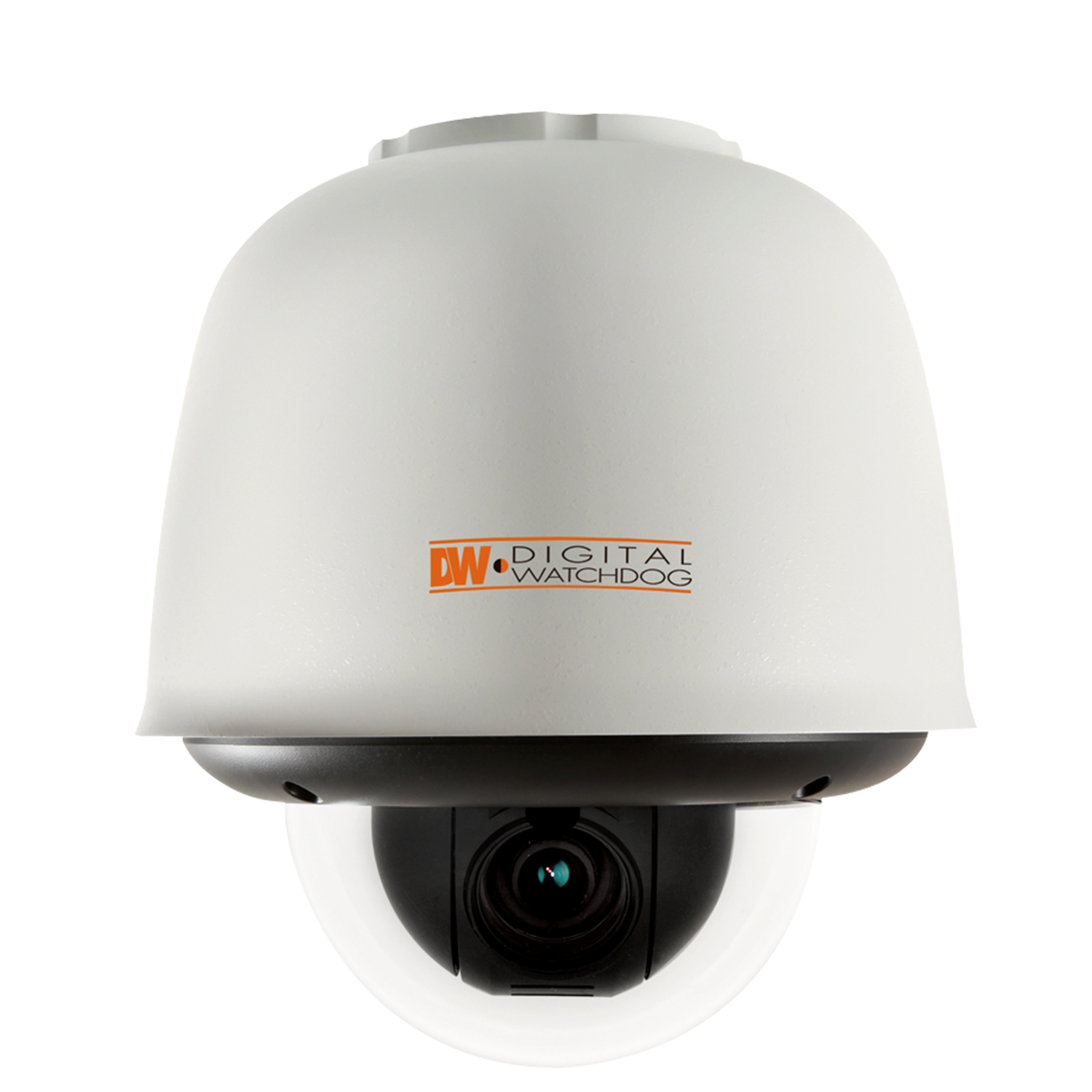

MEGApix® 2.1 Megapixel 20x Pan, Tilt, Zoom Dome Indoor/Outdoor IP Camera

Share this Product!

Model: DWC-MPTZ20X

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

The MEGAPIX™ IP cameras provide real-time 2.1MP (1080P) resolution with features such as 3D DNR and WDR, delivering superb image in any environment. And PoE simplifies installation, connecting power and network through a single cable. All cameras are ONVIF compliant, guaranteeing successful integration with any open platform solution.

Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream

The cameras allow you to optimize your bandwidth usage, by offering simultaneous streaming. This allows you to stream high resolution for live monitoring and motion events, and setup a lower resolution streaming profile for when no activity is detected. This allows the camera to seamlessly transition between low and high resolution streams to maximize bandwidth usage, reduce network traffic and improve your overall system’s performance and power.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

2.1 Megapixel Image Sensor (1080P, 30fps)
Wide Dynamic Range (WDR)
Triple Codecs (H.264, MJPEG, MPEG4) with Simultaneous Dual-Stream
4.7~94mm Remote Auto Focus Lens
12x Digital Zoom + 20x Optical Zoom
True Day/Night with Mechanical IR Cut Filter
Smart DNR™ 3D Digital Noise Reduction
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Auto White Balance (AWB)
Programmable Privacy Zones
Motion Detection
Pan 0~360° Endless, 360° Per Second Pan Speed (PTZ only)
Vector Drive Technology – Pan/Tilt Motion in Shortest Path (PTZ only)
256 Preset Positions, 4 Sequences, 8 Swings, 8 Tours
Heater and Fan Built-in
Micro SD/SDHC Class 10 Card Slot for Emergency Backup [card not included]
Junction Box Built-in
Alarm Sensor Input
Relay Output
Web Server Built-in
High Power PoE Injector and AC24V
ONVIF Compliant, Profile S
IP66 Certified (Weather Resistant)

Image Sensor		1/2.8" CMOS Sensor
Minimum Illumination		F1.6 (50IRE): 1.7 Lux [Color] F1.6 (50IRE): 0.3 Lux [B&W]
Resolution		2.1 Megapixels, 1080P (1920x1080)
Total Pixels (H X V)		2016 (H) X 1108 (V)
Pan/ Tilt
Groups		8 Tours
Patterns		4 Preset Sequences
Presets		255 Prests
Range		360o Pan, 90o Tilt
Scans		8 Swings
Lens
Digital Zoom		12x Digital Zoom
Focal Length		4.7~94mm
Lens Type		Remote Auto Focus Lens
Optical Zoom		20x Digital Zoom
Mechanical
Dimensions		260 X 271.5 mm, 10.2 X 10.7 in
Housing Material		Aluminum
Housing Type		Pan Tilt Zoom Dome
Sensor Input/ Output		3 Input/ 1 Output
Warranty		2 Years
Weight		1.09lbs
Network
Frame Rate		Up to 30 frames per second at all resolutions on all streams
LAN		802.3 Compliance 10/100 LAN
Maximum Simultaneous User Access		4 Simultaneous Users
ONVIF Conformant		Profile S
Protocols		TCP/IP, HTTP, DHCP, PPPoE, ICMP, ARP, RARP, RTSP, NTP, UDP, Multicast
SD Card Backup		Up to 24 Hours to Micro SD Card (4~32GB) for Network Loss Emergency Recording Only (Card not included)
Streaming Capability		Dual-Stream at Different Rates and Resolutions
Video Compression Type		H.264, MPEG4, MJPEG (Super Fine~ Low)
Video Management Software		DW Spectrum, Pivot CMS, DW's VMS
Web Viewer		OS: Windows XP / Vista / 7, MAC OS Browser: Internet Explorer, Chrome, Firefox, Safari.
Operational
3D DNR	3D Digital Noise Reduction	OFF / ON, Level 1~5
AGC	Auto Gain Control	Auto, Manual, Shutter Priority, Iris Priority, Bright, Spotlight
AWB	Auto White Balance	AWB, Indoor, Outdoor, Manual
Alarm Notifications		E-mail & Remote Monitoring Software Notifications
BLC	Backlight Compensation	ON/OFF
Brightness		0~31
D/N	Day/ Night	Auto, Day (Color), Night (B/W)
DSS- Digital Slow Shutter		OFF, AUTO
Programmable Privacy Zones		24 Zones
Recording Schedule		On Network Loss: Continuous, Motion, Pre- and Post- Alarm
WDR	Wide Dynamic Range	ON/OFF
Environmental
NEMA RATING		Protects against dust and high pressure water.
Operating Humidity		Less than 90% (Non-Condensing)
Operating Temperature		-45°C ~ 50°C (-49°F ~ 122°F)
Power Consumption		Heater Off: 22W, 900mA, Heater On: 46W, 1900mA
Storage Temperature		-29°C ~ 55°C (-20.2°F ~ 131°F)
Voltage		High Power PoE Injector [Power over Ethernet] & 24VAC
