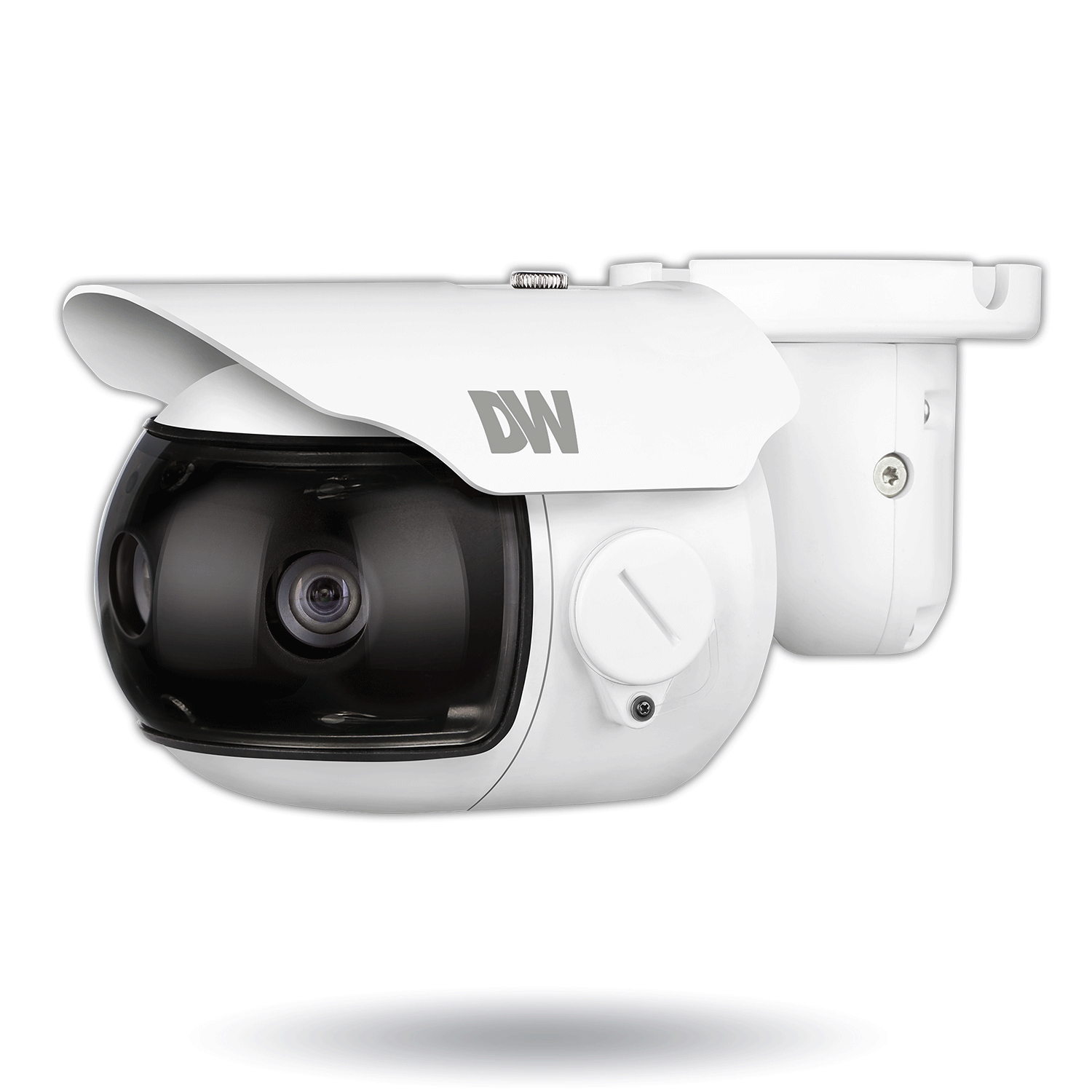

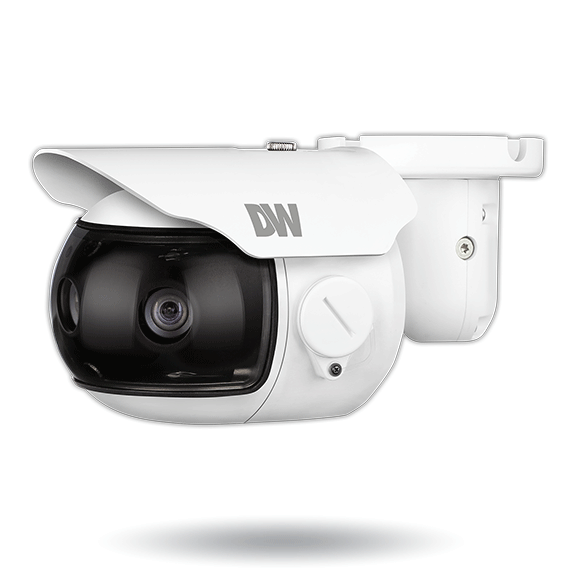

MEGApix® Pano™ 6MP multi-sensor bullet IP camera with 4.0mm fixed lenses

Share this Product!

6MP multi-sensor bullet IP camera with 4.0mm fixed lenses

Model: DWC-PB6M4T

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

The MEGApix® PANO™ 6 Megapixel Three-Sensor IP Camera delivers crystal-clear 180° panoramic video for wide area surveillance at up to 20fps. Our revolutionary technology stitches the three images into a single 180° view. Use DW Spectrum® IPVMS to digitally zoom into the 6 megapixels of resolution and reveal details in live and recorded video. The stylish bullet-style housing is easy to install and IP66-rated weather resistant for indoor and outdoor applications. 100ft IR is available with the optional IR Sun Shield (DWC-EXTIR100).

100ft Infra Red Illuminator and Sunshield for Panoramic Bullet Cameras

The DWC-EXTIR100 is a weather and tamper resistant infra-red (IR) illuminator and sunshield for DW^®’s HD Analog STAR-LIGHT™ and IP MEGApix® three-sensor panoramic bullet cameras. The DWC-EXTIR100 is mounted directly to the camera, replacing the sunshield for easy installation. The illuminator is perfect for both indoor and outdoor installations, and can Cold Start at temperatures as low as -40°F (-40°C).

LEARN MORE

Cold Start -40°F (-40°C)

The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

3x 2.1MP 1/3" Image Sensor at up to 20fps
6MP 180° Panoramic View IP Camera
3x 4.3mm Fixed Lens
True Wide Dynamic Range (WDR)
Multi Codecs (H.265, H.264, MJPEG) with Simultaneous Dual-Stream
Cold Start -40°F (-40°C)
Two-Way Audio
Easy Image Alignment and Stitching
Digital Zoom and Pan Control
Smart DNR™ 3D Digital Noise Reduction
True Day/Night with Mechanical IR Cut Filter
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Auto White Balance (AWB)
Motion Detection
Micro SD/SDHC Class 10 Card Slot (card not included)
Alarm Sensor Input
Relay Output
Web Server Built-in
UL listed
ONVIF Conformant, Profile S
PoE Class 3 and DC12V
IP66 Certified Weather and Tamper Resistant
5 Year Warranty

Image sensor	3x 1/3” CMOS
Total pixels	5760 (H) X 1080 (V)
Minimum scene illumination	0.06 lux (color)
Minimum scene illumination	0.01 lux (B&W)
Maximum resolution	6MP (3x 2.1MP/1080p)
LENS
Focal length	3x 4.3mm, F2.0
Lens type	Fixed lens
Field of view (FoV)	3x 62°
I/O
Audio in / out	1/1
Alarm In/Out	1/1
Audio compression	G.726, G.711, u-low (bi-directional)
OPERATIONAL
Shutter mode	Auto, manual
Shutter speed	1/30 - 1/30,000
Auto gain control	Max 41dB
Day / night	Auto, day (color), night (B/W)
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
Wide dynamic range (WDR)	True WDR on, off
Wide dynamic range (WDR) dB	100dB
White balance	Auto
Backlight compensation (BLC)	On, off
Privacy zones	8 programmable privacy masks
Alarm notifications	Notifications via SD card recording
Memory Slot	Micro SD/SDHC class 10 card (card not included)
NETWORK
LAN	802.3 compliance 10/100 LAN
Video compression type	H.265, H.264, MJPEG
Resolution	3x 1920 x 1080 (each sensor)
Frame rate	5760 X 1080 at 20fps
Video bitrate	H.264 / H.265 : 32Kbps ~ 8Mbps MJPEG : 1Mbps ~ 40Mbps
Bitrate control	H.265 dual-stream or simultaneous H.265 / H.264 / MJPEG
Streaming capability	dual-stream at different rates and resolutions
IP	IPv4, IPv6
Protocol	TCP, UDP, IP, HTTP, DHCP, DNS, ICMP, ARP, DDNS, NTP, SNMP, Syslog, UPnP, Bonjure, ZeroConf, RTP/RTSP, Onvif, Genetec Protocol
Security	Digest authentication (ID/PW)
ONVIF conformance	Yes
Web viewer	OS: Windows®, Mac® OS, Linux® Browser: Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video management software	DW Spectrum® IPVMS
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified weather and tamper-resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V, PoE IEEE 802.3at Class 3 (adaptor not included)
Power consumption	TDN On: MAX 10.1W TDN Off: 7.7W
MECHANICAL
Material	Aluminum bullet housing
Dimensions	4.56" x 9.66" (116 x 245.5mm)
Weight	2.2 lbs (1.0 kg)
