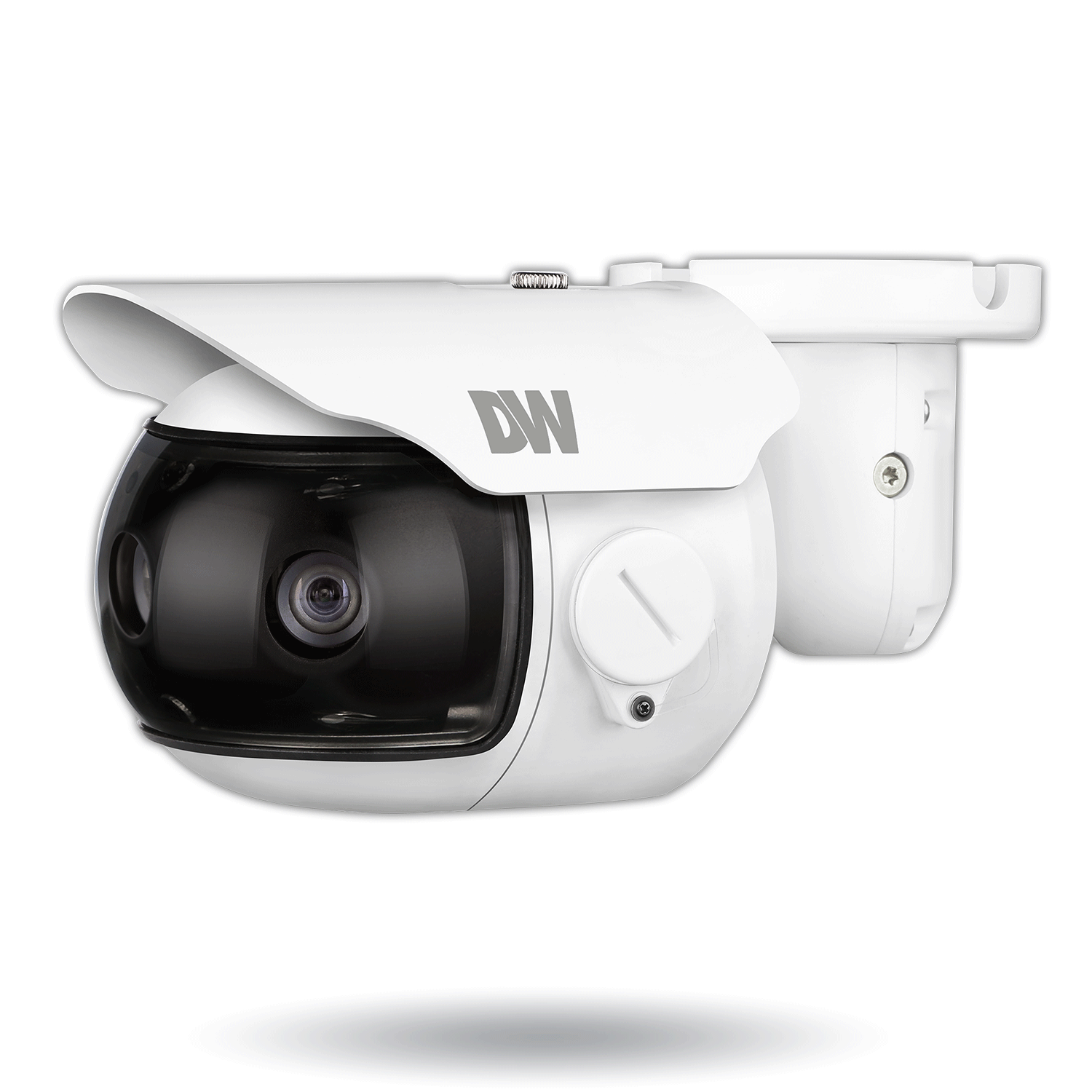

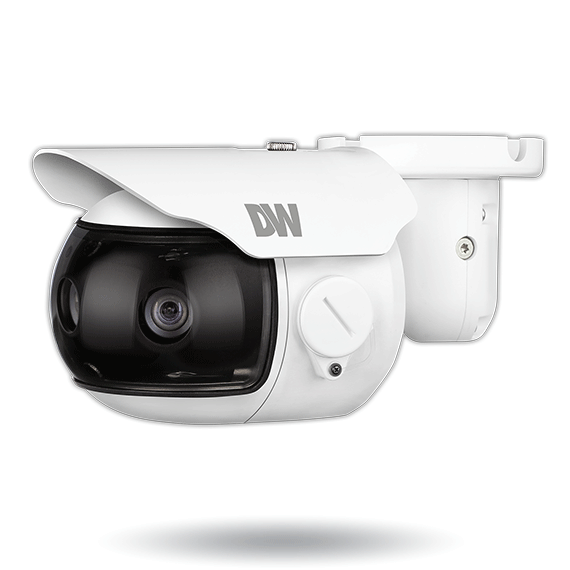

Star-Light Pano™ 6MP user-configurable multi-sensor bullet camera with 4.3mm fixed lenses

Share this Product!

Star-Light Pano™ 6MP user-configurable multi-sensor bullet camera with 4.3mm fixed lenses

Model: DWC-PB753WTW

Find a Reseller | Request a Demo | Contact Us

STAR-LIGHT PANO Cameras use three 2MP CMOS sensors and three 4.3mm fixed lenses to produce stunning 180° views at up to 30fps when placed side by side in a CMS. DW^® AHD cameras are engineered to work with VMAX A1™ All-in-One DVRs that record 1080p AHD, TVI and all analog to 960H. AHD provides an easy system upgrade to high definition video.

Important Note: The camera requires a DVR that supports HD over Coax protocols, like the VMAX A1.

WORLD’S FIRST!
AHD 6MP 180º Panoramic View Camera

STAR-LIGHT AHD™ Panoramic cameras produce clear 1080p high resolution real-time video images at a 180° viewing angle, increasing the camera's ROI by offering enhanced detail and image clarity for monitoring large areas from a single camera.

Analog HD over Coax® technology with HD-Analog signal support
Star-Light™ super low light technology
3x 2.1MP/1080p 1/3" image sensor at real-time 30fps
6MP 180° panoramic camera
3x 4.3mm fixed lenses
True wide dynamic range (WDR)
OSD control via coaxial (UTC)
Smart DNR™ 3D digital noise reduction
True day/night mechanical IR cut filter
De-Fog™ extreme weather image compensation
Highlight masking exposure (HME)
Auto sensing 24VAC/12VDC with line lock
Easy icon driven OSD menu with built-in joystick
Programmable Privacy Zones
Auto gain control (AGC)
Backlight compensation (BLC)
Auto white balance (AWB)
IP66 environmental-rated dust-tight and water-resistant
5 year warranty

Image sensor	3x 2.1MP 1/3” CMOS
Active pixels	3X 1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	HD over Coax® technology with HD-Analog and all analog to 960H signal support
Synchronization	Internal
Resolution	6 megapixel (3x 1920x1080 Sensors)
Minimum scene illumination	0.06 lux (Color)
Minimum scene illumination	0.01 lux (B&W)
S/N ratio	55dB
Video output	HD-Analog 6MP (3x 1080p at 30fps + 4ch / 180° panoramic view)
Alarm output	3 alarm outputs
LENS
Focal length	4.3mm
Lens type	Fixed lens
OPERATIONAL
Operational	x3 (below specs per sensor)
Shutter speed	1/30-1/30,000
Backlight	On, off
Star-Light (sense-up)	Off, x2 – x32
Wide dynamic range (WDR)	True WDR, On, Off
Wide Dynamic Range (WDR) dB	100dB
Digital noise reduction (DNR)	Off, low, middle, high
White balance	Auto / auto-ex / preset / manual
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	Max 60dB
Motion detection	3 zones per camera, total 12 motion zones
Privacy zones	16 privacy zones per camera, total 72 privacy zones
Sharpness	0 ~ 10
Gamma	0.5
RS485 / UTP built-in	Pelco D / A-PC
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified weather and tamper resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V/AC24V dual voltage
Power consumption	DC12V: 8.5W, 708mA
Power consumption	AC24V: 8.5W, 354mA
MECHANICAL
Material	Aluminum bullet housing
Dimensions	9.9" x 3.58" (252 x 91 mm)
Weight	2.2 lbs (1.0 kg)
