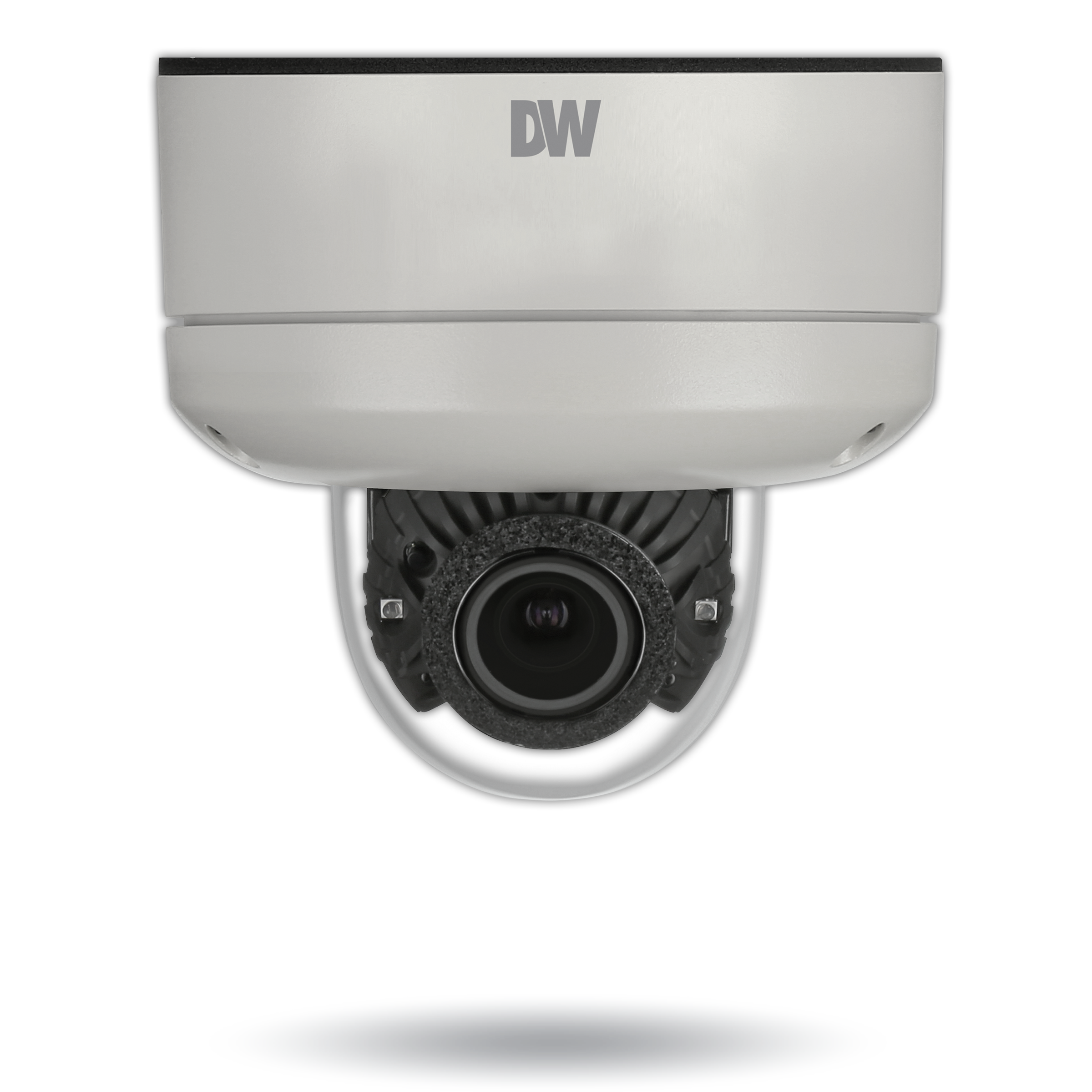

Star-Light™ UHDoC® 2.1MP/1080p vandal dome Snapit™ camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Share this Product!

Star-Light™ UHDoC® 2.1MP/1080p vandal dome Snapit™ camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Model: DWC-V4283WTIR

Find a Reseller | Request a Demo | Contact Us

Star-Light™ Universal HD over COAX^® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. Our unique Snapit™ housing is IP68 rated and makes installation a snap!. Star-Light™ Universal HD over Coax^® cameras are engineered to work with our VMAX A1™ Universal HD over Coax^® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.

Snapit™ Outdoor Vandal Dome Housing

Our Snapit™ housing offers a simple to install, three-step process. All Snapit™ outdoor dome models are IP68 and IK10 rated, include DW®’s CleanView™ hydrophobic dome coating to repel water, dust and grease and will Cold Start at -40°F./-40°C.

CleanView™ Hydrophobic Dome Coating

The CleanView™ coating improves visibility by reducing water spots, dust and grease build-up on the camera dome housing’s glass. The CleanView™ coating treatment will allow the liquid to roll off of the dome’s glass surfaces when tilted vertically up to 10° or less. The CleanView™ coating leaves the camera dome’s glass clean, repels dust and grease, preventing IR reflections due to dust and smudges.

Cold Start -40°F (-40°C)

The installed heater helps the camera power up in extreme cold weather conditions where temperatures may go as low as -40°F. This makes the cameras ideal for any harsh environment installation.

Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
STAR-LIGHT™ Super Low Light Technology
2.1MP 1/3" Image Sensor at Real-time 30fps
2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
True Wide Dynamic Range (WDR)
OSD Control Via Coaxial (UTC)
Snapit™ Easy Installation Housing
CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease
Cold Start -40°F (-40°C)
100' Smart IR™ with Intelligent Camera Sync.
Smart DNR™ 3D Digital Noise Reduction
True Day/Night Mechanical IR Cut Filter
De-Fog™ Extreme Weather Image Compensation
Highlight Masking Exposure (HME)
Auto Sensing 24VAC/12VDC with Line Lock
Easy Icon Driven OSD Menu with Built-in Joystick
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
UTP Built-In
Junction Box Built-in
RS-485 Built-in
NDAA/TAA compliant
IP68 Certified Water and Tamper Resistant
IK-10 Impact Rated
5 Year Warranty

Image sensor	2.1MP/1080p 1/3" CMOS
Active pixels	1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization	Internal
Resolution	1920 x 1080 (1080p)
Minimum scene illumination	0.3 lux (color)
Minimum scene illumination	0 lux (B&W)
S/N ratio	55dB
Video output	HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
I/O
Alarm output	1 alarm output
LENS
Focal length	2.8 ~ 12mm
Lens type	Motorized zoom auto-focus p-iris lens
Field of view (FoV)	91 - 28°
IR distance	100ft range
OPERATIONAL
Shutter mode	Auto, manual, FLC
Shutter speed	1/30-1/30,000
Backlight	On, off
Star-Light (sense-up)	Off, x2 – x32
Wide dynamic range (WDR)	True WDR, off, on
Wide dynamic range (WDR) dB	100dB
Dynamic range compressor (DRC)	Off, low, middle, high
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
White balance	Auto / auto-ex / preset / manual
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	0~10
Motion detection	Yes
Privacy zones	16 programmable privacy zones
Sharpness	0 ~ 10
Gamma	0.45 ~ 0.75
De-fog	On, off
RS485 / UTP built-in	Pelco D / Pelco C
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP68 Certified Water and Tamper Resistant
IK rating	IK10-rated impact resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V/AC24V dual voltage
Power consumption	DC12V (LED OFF): 3.0W DC12V (LED ON): 5.2W
Power consumption	AC24V (LED OFF): 2.3W AC24V (LED ON): 4.6W
MECHANICAL
Material	Snapit™ aluminum vandal housing, polycarbonate dome
Dimensions	5.47" x 4.79" (139 x 121.8 mm)
Weight	2.05lbs (0.93kg)

DWC-V4CM

Ceiling mount bracket for Snapit™ outdoor dome cameras

DWC-GPLT

Converter plate for electronic gang box - ivory

DWC-FMPSNAP

Flush mount bracket for Snapit™ outdoor dome cameras

DWC-V4SSLD

Sunshield cover for Snapit™ outdoor dome cameras

DWC-V4WM

Wall mount bracket for Snapit™ outdoor dome cameras
