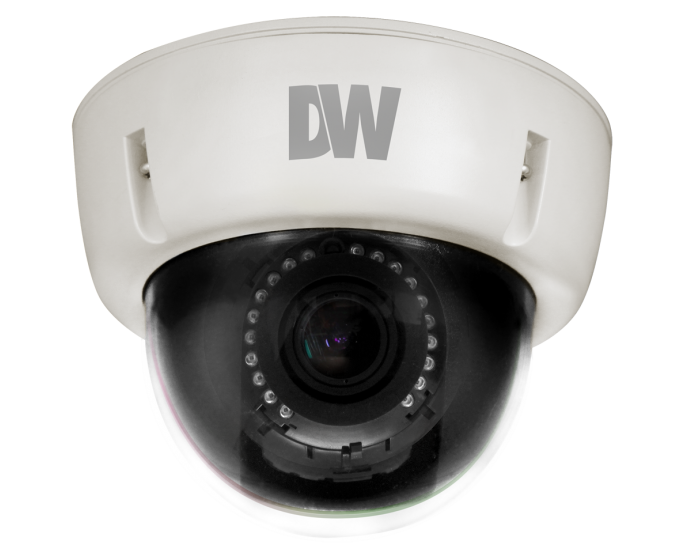

STAR-LIGHT MPA™ 1.3 Megapixel Analog Indoor/Outdoor Dome Camera with IR

Share this Product!

Model: DWC-V5661TIR

Find a Reseller | Request a Demo | Contact Us

DISCONTINUED

The STAR-LIGHT™ MPA cameras are groundbreaking analog cameras that deliver up to 800TVL resolution thanks to their 1.3MP CMOS sensor. These cameras offer powerful features such as STAR-LIGHT™ super low light technology, CleanView™ self-cleaning dome technology, WDR, true day/night, QuickZoom™ technology without pixilation and De-Fog™ enhancement for extreme weather conditions.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

1/3” Sony 1.3MP CMOS, 820TVL [B/W], 800TVL [Color]
QuickZoom™ Full Frame 8x Digital Zoom with no Loss in Resolution
STAR-LIGHT™ Super Low Light Technology
Wide Dynamic Range (WDR)
2.8~12mm Varifocal Auto Iris Lens
CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease (Outdoor Domes Only)
Smart IR™ with Intelligent Camera Sync. 100ft Range
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
De-Fog™ (Extreme Weather Image Compensation)
Auto Sensing 24VAC/12VDC with Line Lock
Secondary Video-BNC Output (While UTP in use)
Easy Icon Driven OSD Menu with Built-in Joystick
True Day/Night Mechanical IR Cut Filter
Programmable Privacy Zones
Auto Gain Control (AGC)
Back Light Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
UTP Built-in
RS-485 Built-in
Motion Trigger Output (5V)
IP66 Certified (Weather Resistant) – Outdoor Domes and Bullets only

Frequency		15.734KHz (H), 59.95Hz (V)
Image Sensor		1/3" Sony 1.3MP CMOS Sensor
Minimum Illumination		F1.2 (30IRE): 0.0 Lux
Resolution		800TVL [Color], 820TVL [B/W]
S/N Ratio- Signal to Noise Ratio		55dB (AGC off)
Scanning System		2 : 1 Interlace
Synchronization		Internal or Line Lock
Total Pixels (H X V)		1280 (H) x 1024 (V)
Video Output		CVBS: 1.0Vp-p / 75 ?
Lens
Digital Zoom		x8
Focal Length		2.8~12mm
IR Distance		100ft Range IR
Lens Type		Varifocal Auto Iris
Mechanical
Dimensions		145 x 108.8 mm (5.7 X 4.28 in)
Housing Material		Aluminum
Housing Type		Vandal Dome
Sensor Input/ Output		1 Alarm Output
Warranty		5 Years
Weight		1.65 lbs
Operational
3D DNR	3D Digital Noise Reduction	OFF / LOW / MIDDLE / HIGH
AGC	Auto Gain Control	0~20
AWB	Auto White Balance	ATW / AWB / PUSH / MANUAL
BLC	Backlight Compensation	OFF / ON
D/N	Day/ Night	AUTO/ DAY/ NIGHT
DPC- Dead Pixel Cancellation		OFF/ ON
DRC	Dynamic Range Compressor	OFF / Low / Middle / High
Gamma		0.45 ~ 0.65
HME	Highlight Masking Exposure	ON/OFF
Programmable Privacy Zones		OFF / ON (16 Programmable Zones)
Sharpness		0~10
Starlight™ (Super Low Light Technology)		X2-X64
WDR	Wide Dynamic Range
Environmental
Operating Humidity		Less than 90% (Non-Condensing)
Operating Temperature		-20°C ~ 60°C (-4°F ~ 140°F)
Power Consumption		DC12V: 3.3W, 275mA, LED On: 5.94W, 495mA AC24V: 2.56W, 106mA, LED On: 4.9W, 204 mA
Voltage		Dual (12VDC & 24VAC)
