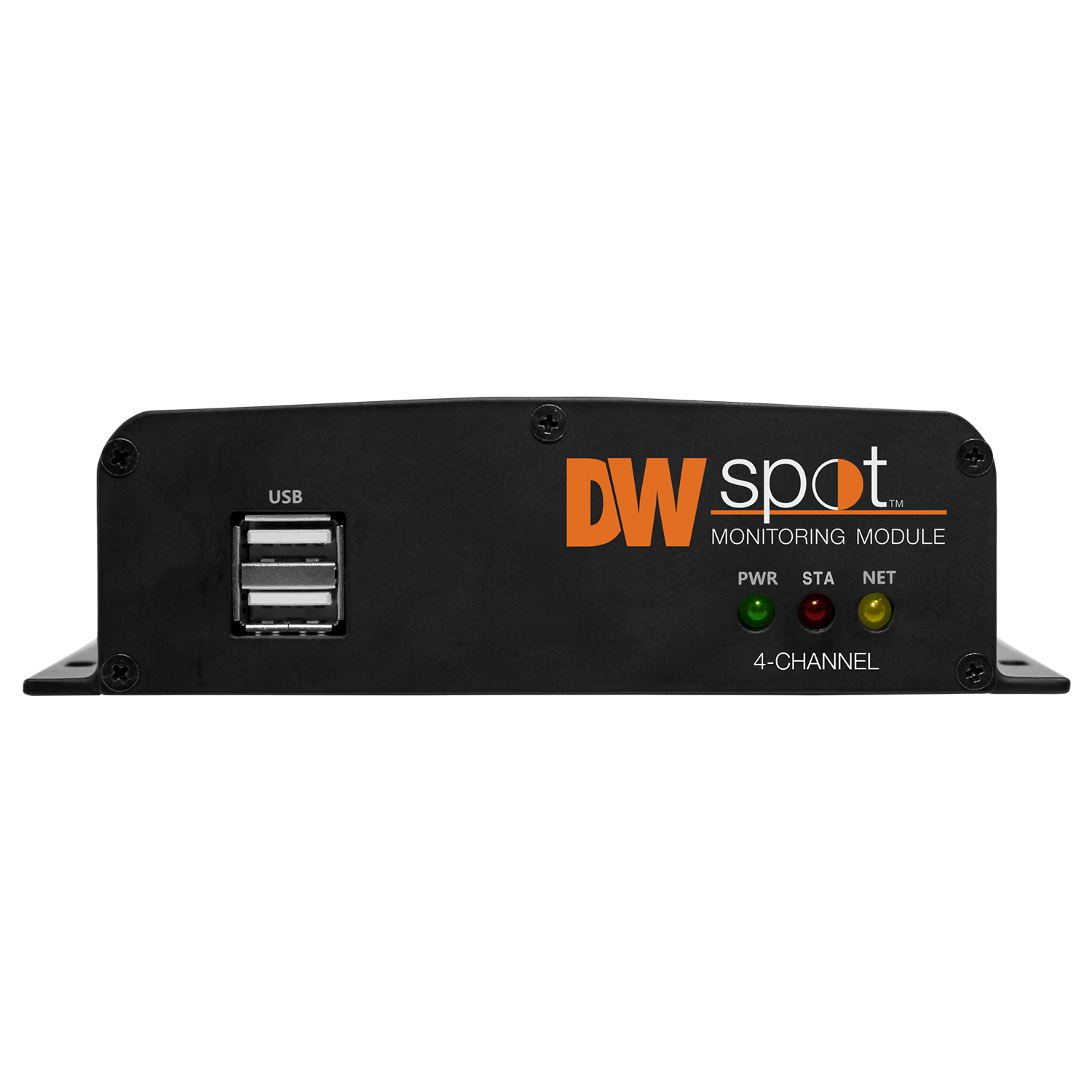

4-channel DW® Spot monitoring module

Share this Product!

Model: DW-HDSPOTMOD

Find a Reseller | Request a Demo | Contact Us

DW^®’s new DW Spot™ Monitoring Module lets you directly view up to four HD cameras at a time without connecting to them through a PC or server. The DW-HDSPOTMOD is easy to use, automatically searching the network and identifying an unlimited number of ONVIF conformant IP cameras, VMAX AHD Core™ DVRs or VMAX IP Plus™ NVRs for local monitoring. The DW Spot™ Monitoring Module is ideal for providing public views in retail and office environments, as well as providing camera views for security personnel. It even allows you to post a scrolling text message of any length over the video! The DW Spot™ Monitoring Module can be configured remotely via a web browser, includes HD and VGA outputs, a USB mouse and is backed by DW^®’s unbeatable 5 year warranty.

DW^® SPOT monitoring module connection diagram.

Directly view up to sixteen (16) HD cameras at a time without connecting to them through a PC or server (up to 4 for DW-HDSPOTMOD models). The DW^® Spot monitoring solutions are ideal for providing public views in retail and office environments, as well as providing camera views for security personnel.

Automatic Network Search and Device Registration
Identifies an unlimited number of ONVIF Conformant IP Cameras, VMAX AHD Core DVRs and VMAX IP Plus NVRs
Live Monitoring of 4 Cameras Simultaneously, Single Camera View and 4 Camera Full Screen Sequencing
Drag and Drop Camera Selection from DVRs and NVRs
Remote Configuration via Web Browser
Supports up to 5 Megapixel (2592x1944) resolution cameras, max. 80 Mbps throughput
HD and VGA Video Outputs
USB Mouse Included
Velcro for Easy Mounting to the Back of a Monitor
5 Year Warranty

OPERATIONAL
Operating system		Embedded Linux®
IP camera	Input	4 channels
	Protocol	ONVIF
Display	Speed	Up to 120fps
	Max. throughput	80 Mbps
	Screen mode	Single channel, quad view mode, sequence
Video – in		IP cameras (up to 5MP, 2592 x 1944 resolution), Universal HD over Coax® VMAX® A1™ DVRs or VMAX® IP Plus™ NVRs
Video – out	Monitor	True HD or VGA
	Resolution	800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080
LAN		1x 10/100/1000Mbps gigabit ethernet (RJ45)
Protocols		Fixed IP, DHCP & DDNS
Network function		Live monitoring
		Time synchronization by NTP server
Remote management	Web (IE)	System settings
System recovery after power failure		Auto-reboot and log file system
Advanced functions		Firmware upgrade by USB and CMS
		Import & export settings
		Warning alarm for system over-heating
		Digital zoom
System operation		USB mouse
ENVIROMENTAL
Power		DC12V
Operating temperature		41°F ~ 104°F (5°C ~ 40°C)
Operating humidity		20–90% RH (non–condensing)
Dimensions		5.47" x 4.84" x 1.25" Inch (139 x 123 x 32 mm)

DW-HDSPOTMOD

Title	Type	Size	Download
DW Spot Monitoring Module user manual		3.61 MB
DW-HDSPOTMOD data sheet		0.44 MB
DW-HDSPOTMOD data sheet - French		0.48 MB
DW-HDSPOTMOD data sheet - Spanish		0.75 MB
DW® Spot™ monitoring module sell sheet		1.21 MB
Spot Monitoring Module Quick Setup Guide		1.05 MB

Title	Version	Compatibility	Size
2nd gen DW-HDSPOTMOD firmware v1.3.7.0	v1.3.7.0	HWID: FS-10xxC	31.06 MB
1st gen DW-HDSPOTMOD firmware v1.3.7.0	v1.3.7.0	HWID: HS-10xxC	23.96 MB
DW-HDSPOTMOD firmware v1.2.9.7	v1.2.9.7		21.50 MB
