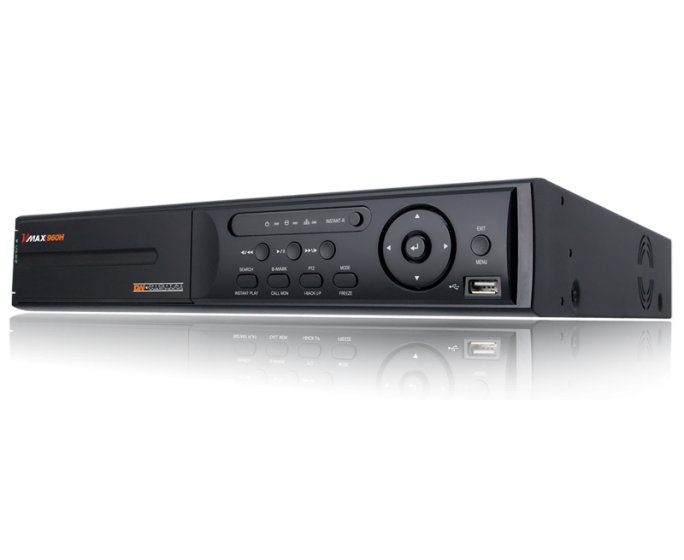

VMAX 960H Flex 8-Channel

Share this Product!

Model: DW-VF960H8

Find a Reseller | Request a Demo | Contact Us

The VMAX960H Flex™ is an advanced H.264 embedded DVR offering Real-Time 960H resolution recording with 8 /16 channels and sensor inputs, 2 alarm output and 8 audio inputs. The DVR is available with basic storage up to 12 Terabytes and includes DW’s unbeatable 5 year, limited warranty.

Advanced H.264 Stand Alone DVR
Maximum 240fps at all Resolutions
Central Management Software: Pivot™ and ACS
Digital Zoom in Live and Playback
8 Audio Inputs/ 2 Audio Outputs
Auto Firmware Upgrade via FTP Server and Manual
Help Menu on Major Functions
Import/ Export Configurations Between Multiple DVRs
Mobile Application: iOS and Android Smartphones and Tablets, Kindle Fire Tablet
Network Bandwidth Control
One Touch: Video Backup, Reverse Playback, and Emergency Recording
Remote Software Platforms: Windows and MAC
S.M.A.R.T Health Check with E-mail Notifications
Scheduled Network Backup
8 Sensor Inputs/ 2 Alarm Outputs
Simple & Free DDNS
USB Mouse, IR Remote Control, GUI
Warranty: 5 Years Limited
Web- Based Client with Multi- User Access
HDD Calculator and Auto Recording Configuration
E-mail and Text Event Notifications with Snapshot

Environmental*
HDD Interface		Up to 2 HDD, SATA-II, SATA-III
Max. Internal Storage		6TB
Power Requirements		12V 6.67A D/C
Power Consumption		80.04W
Operating Temperature		5°C ~ 40°C (41°F ~ 104°F)
Operating Humidity		Less than 80% humidity
Warranty		5 Years Limited
Dimensions		14.27 X 2.61 X 14 in (362.40 X 66.40 X 355.90 mm)
Weight		8.4lb (3.8kg)
Available Models		DW-VF960H 81T DW-VF960H 82T DW-VF960H 83T DW-VF960H 84T DW-VF960H 86T
Network*
Client Monitoring Software		ACS (Client S/W), MAC (Apple S/W), Pivot (CMS S/W), DW Spectrum (Synergy S/W)
IP Protocols		Static, DDNS, DHCP
Mobile Applications		iPhone, Android Phones, Blackberry (up to Version 8), iPad, Android Tablets, Kindle Fire
Transmission Speed- Live		240fps @ D1 Resolution
Web Viewer Operations		Live, Playback, Remote Configuration, up to 10 Simultaneous Connections (in Live)
Web Viewer Platforms		Internet Explorer
Network Connection		Ethernet (1 x Gigabit 10/100/1000 Mbps)
Performance*
Camera Image Control		Brightness, Contrast, Saturation, and Hue
Covert Channel		Live & Playback
Playback Functions		x1/16, x1/8, x1/4, x1/2, x1, x2, x4, x8, x16, x32, First Data, Last Data, Frame-by-Frmae (Panoramic
Playback Rate		240fps at All Resolutions
Playback Resolution		Full 960H Real-Time Playback, 30fps at All Resolutions
Recording Mode		Schedule, Event, Time-Lapse, Panic, Continuous, Pre & Post Event, Motion, Recording Configuration per Channel
Recording Rate		240fps at All Resolutions
Recording Resolutions		Full 960H Real-Time Recording, 30fps at All Resolutions
Search Modes		Date & Time, Record Table, Calendar, Event Preview, Bookmark, Play from Search, System & Event Logs, Panoramic Search, Single Channel Playback in Live
Special Features		5x Signal Intensifier, Dealer's Portal, True DVR Health Check
Upgrade		USB Drive, Network Upgrade, FTP Remote Upgrade
Compression Algorithm		H.264
Pre Alarm Recording		yes, 0~15 Seconds
Digital Zoom		Live and Playback
External Export Devices		USB Flash Drive, USB HDD, DVD-RW
Video*
Audio Codec		ADPCM
Display Framerate		30fps
Display Modes		1,4,9, Single Channel Playback, Sequence
Looping Output		Optional (DW-VLOOP Accessory not included)
Screen Resolution		1080p, 720p, 1280X1024, 1024X768, 720X480
Serial Interface		1x RS232, 2x RS485 for PTZ Camera & Contrller, 2x USB 2.0
User Interface- Control Options		IR Remote Control, USB Mouse, Front Panel Buttons
Operating System		Linux Embedded
Video Input		8 Channels
Video Output		HDMI, Composite, VGA, Spot monitor
Display Resolution		960H, D1, 2CIF, CIF
Sensor Input		8 Sensor Inputs
Sensor Alarm Output		2 Alarm Outputs
Audio Input (RCA)		8 Audio Inputs
Audio Output		2 Audio Outputs

Model #	Supported Cameras	Storage Size
DW-VF960H81T	8 BNC Channels	1TB
DW-VF960H82T	8 BNC Channels	2TB
DW-VF960H83T	8 BNC Channels	3TB
DW-VF960H84T	8 BNC Channels	4TB
DW-VF960H86T	8 BNC Channels	6TB
DW-VF960H88T	8 BNC Channels	8TB
