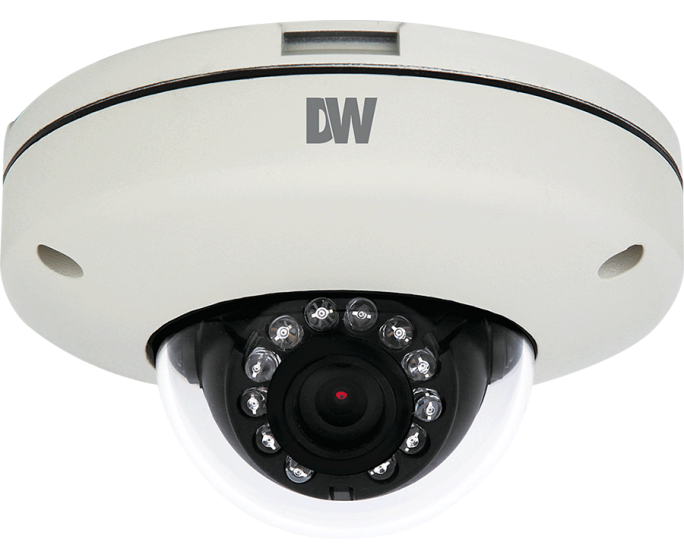

HD-SDI™ 2.1 Megapixel Surface Mount Indoor/Outdoor Dome Camera

Share this Product!

Model: DWC-HF21M4TIR

Find a Reseller | Request a Demo | Contact Us

The HF21M4TIR is a 2.1 megapixel indoor dome camera with HD-SDI 1080P output. SDI technology serializes the video signal and transmits it uncompressed, eliminating distance and deformation issues that may affect the cameras’s image quality, making the image quality a true High Definition. The camera outputs the clearest high definition images with features like 3D Digital Noise Reduction and Wide Dynamic Range. DW’s HD-SDI cameras allow you to enhance your security system to full HD 1080P resolution while still using existing coax installation. DW’s HD-SDI line offers a reliable high quality yet affordable camera in just a few minutes.

TDN [True Day/Night] with IR Cut Filter

During daylight, the IR cut filter allows visible light to pass through, reflecting the unwanted infrared light. In low light environments, where artificial or external light is not available, the cut filter is removed from in front of the lens, allowing the camera to capture the infrared light that given out from the infrared LEDs, to capture as much light as possible to produce brighter images.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

3D DNR (Digital Noise Reduction): Automatic Digital Noise Reduction
D/N - Day/ Night: True Day & Night with IR Cut Filter
IR Distance: 30ft Range IR with Intelligent Camera Sync
Image Sensor: 1/2.8" CMOS Sensor
NEMA RATING: IP66 (Protects against dust and high pressure water.)
WDR- Wide Dynamic Range

Image Sensor		1/2.8" CMOS Sensor
Minimum Illumination		0.0 Lux (IR On)
Resolution		2.1 Megapixels (1920 x 1080)
S/N Ratio- Signal to Noise Ratio		50dB (IR On)
Synchronization		Internal
Total Pixels (H X V)		2000 (H) x 1241 (V) Pixels
Video Output		HD-SDI
Lens
Focal Length		4.0mm
IR Distance		30ft
Lens Type		Fixed Lens
Mechanical
Dimensions		? 125 x 74.3mm (? 4.9 x 2.9")
Housing Material		Aluminum Die-casting
Housing Type		Vandal Dome
Weight		1 lbs
Environmental
NEMA RATING		IP66 (Protects against dust and high pressure water.)
Operating Humidity		Less than 90% (Non-Condensing)
Operating Temperature		-10°C ~ 55°C (14°F ~ 131°F)
Power Consumption		LED Off: 2.0W, 166.7mA LED ON: 2.7W, 225mA
Voltage		12VDC
