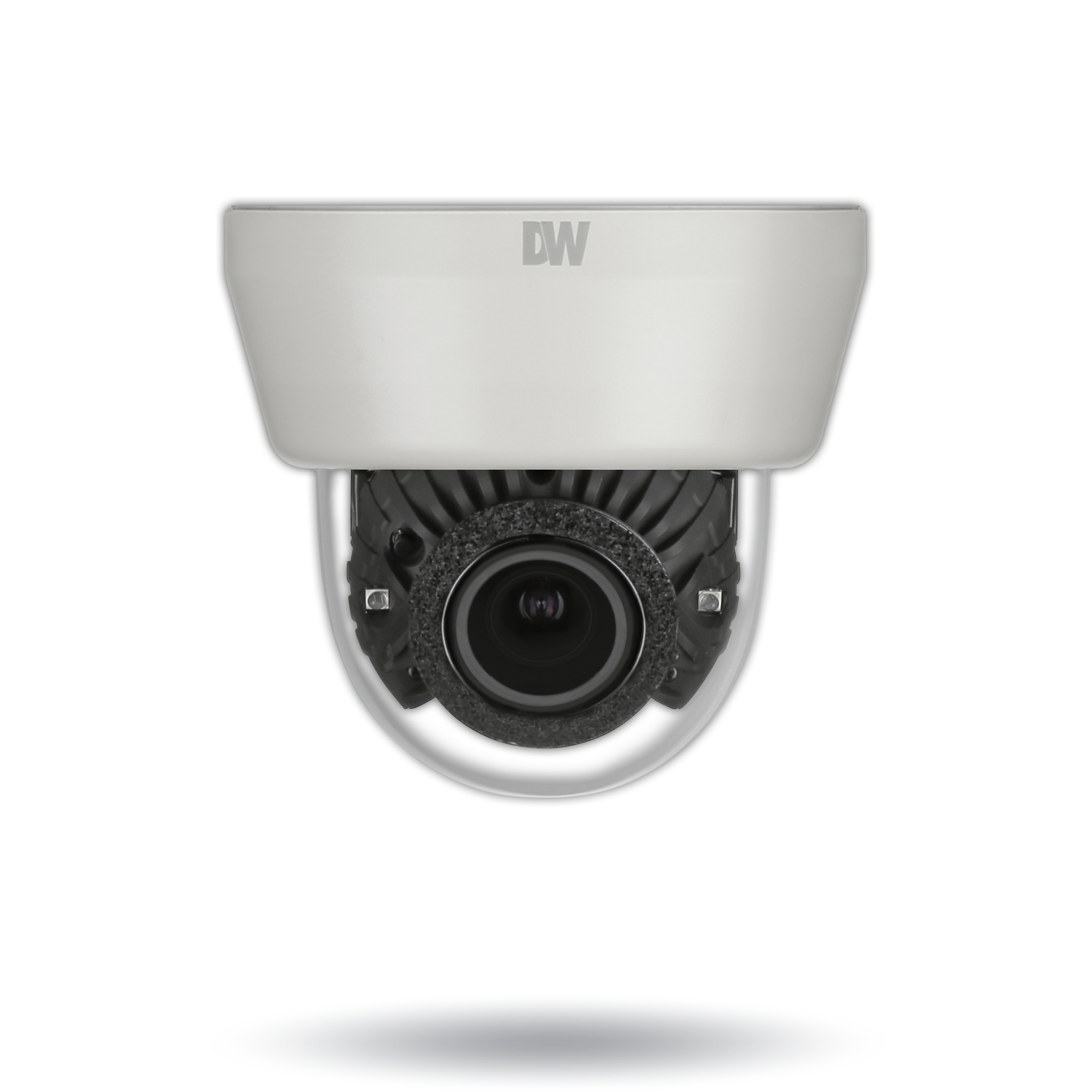

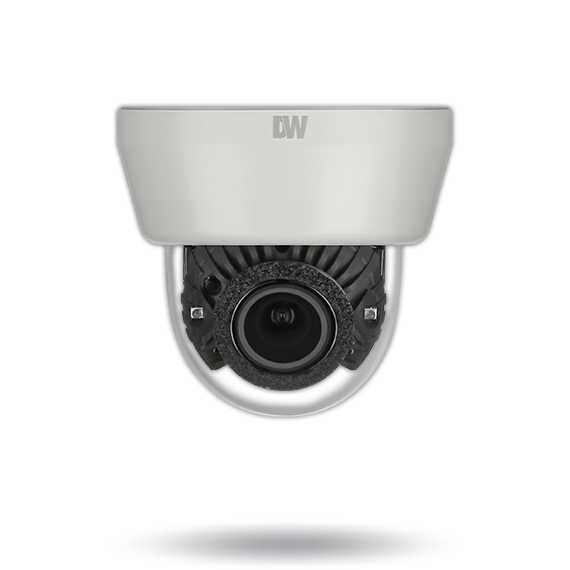

Star-Light™ UHDoC® 2.1MP/1080p indoor dome Snapit™ camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Share this Product!

Star-Light™ UHDoC® 2.1MP/1080p indoor dome Snapit™ camera with 2.8~12mm vari-focal p-iris lens with motorized zoom and auto-focus and IR

Model: DWC-D4283WTIR

Find a Reseller | Request a Demo | Contact Us

Star-Light™ Universal HD over COAX^® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP/1080p and CVBS at 960H. Our unique Snapit™ housing makes installation a snap!. Star-Light™ Universal HD over Coax^® cameras are engineered to work with our VMAX A1™ Universal HD over Coax^® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.on.

Built-in Microphone

Cameras with built-in microphone allow users to integrate live communications from the camera and the scene it monitors. Users can record live video along with audio from the scene, with no need for separate hardware, all monitored and controlled from the same simple camera User Interface (UI)

Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
STAR-LIGHT™ Super Low Light Technology
2.1MP 1/3" Image Sensor at Real-time 30fps
Built-in Microphone
2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
True Wide Dynamic Range (WDR)
OSD Control Via Coaxial (UTC)
Snapit™ Easy Installation Housing
100' Smart IR™ with Intelligent Camera Sync.
Smart DNR™ 3D Digital Noise Reduction
True Day/Night Mechanical IR Cut Filter
De-Fog™ Extreme Weather Image Compensation
Highlight Masking Exposure (HME)
Auto Sensing 24VAC/12VDC with Line Lock
Easy Icon Driven OSD Menu with Built-in Joystick
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
UTP Built-In
RS-485 Built-in
NDAA/TAA compliant
5 Year Warranty

Image sensor	2.1MP/1080p 1/3" CMOS
Active pixels	1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization	Internal
Resolution	1920 x 1080 (1080p)
Minimum scene illumination	0.3 lux (color)
Minimum scene illumination	0 lux (B&W)
S/N ratio	55dB
Video output	HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
I/O
Alarm output	1 alarm output
Audio input/output	1 built-in microphone
Audio sensitivity	-38dB ± 2dB
Audio frequency response	50Hz ~ 10KHz
LENS
Focal length	2.8 ~ 12mm
Lens type	Motorized zoom auto-focus p-iris lens
Field of view (FoV)	91 - 28°
IR distance	100ft range
OPERATIONAL
Shutter mode	Auto, manual, FLC
Shutter speed	1/30-1/30,000
Backlight	On, off
Star-Light (sense-up)	Off, x2 – x32
Wide dynamic range (WDR)	True WDR, off, on
Wide dynamic range (WDR) dB	100dB
Dynamic range compressor (DRC)	Off, low, middle, high
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
White balance	Auto / auto-ex / preset / manual
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	0~10
Motion detection	Yes
Privacy zones	16 programmable privacy zones
Sharpness	0 ~ 10
Gamma	0.45 ~ 0.75
De-fog	On, off
RS485 / UTP built-in	Pelco D / Pelco C
ENVIRONMENTAL
Operating temperature	-40°F ~ 122°F (-40°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V/AC24V dual voltage
Power consumption	DC12V (LED OFF): 3.0W DC12V (LED ON): 5.2W
Power consumption	AC24V (LED OFF): 2.3W AC24V (LED ON): 4.6W
MECHANICAL
Material	Snapit™ plastic housing, polycarbonate dome
Dimensions	4.24" x 3.9" (107.8 x 99.1 mm)
Weight	0.529 lbs (0.24kg)
