Home Products Star-Light™ UHDoC® 2.1MP/1080p micro dome with 2.8mm fixed lens

Share this Product!

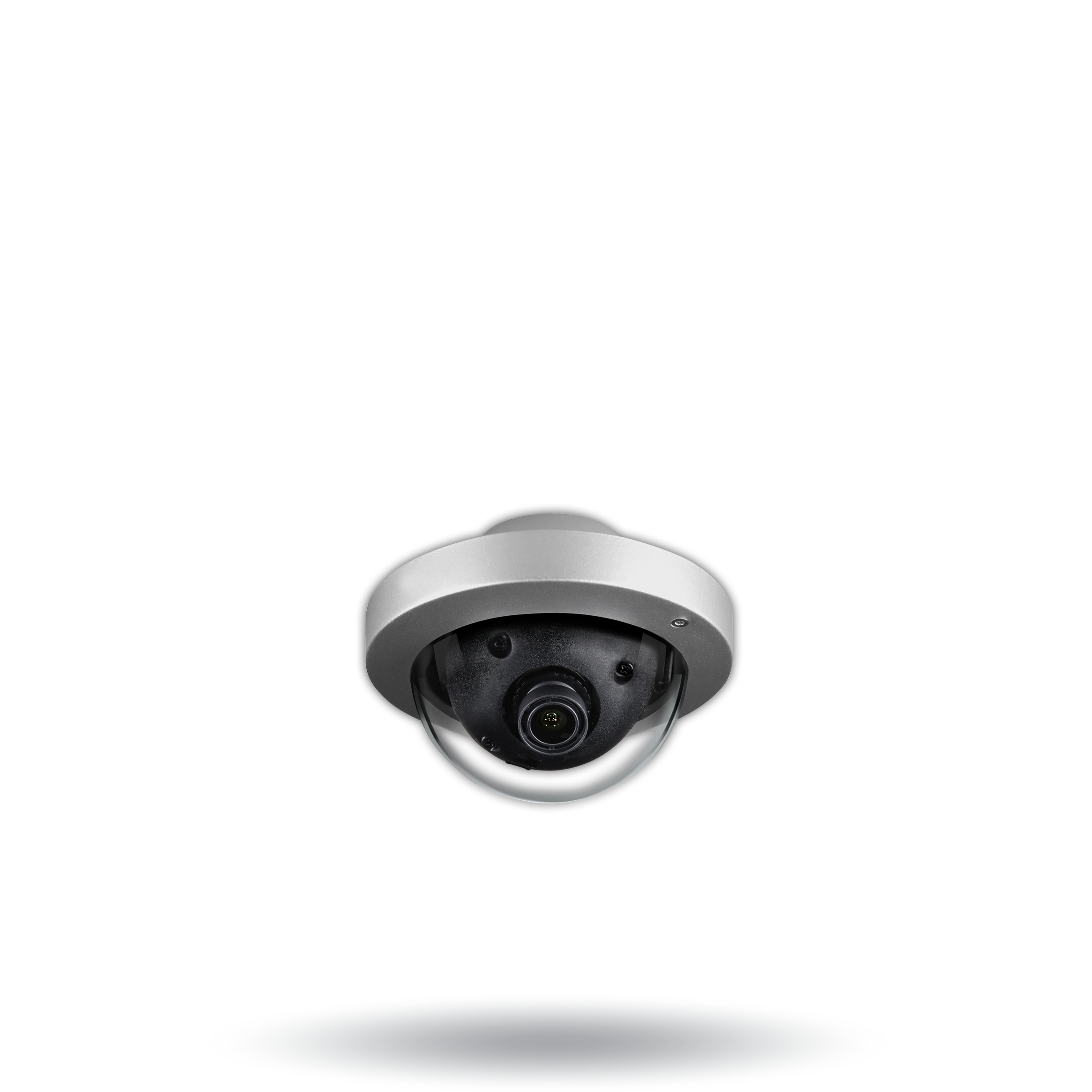

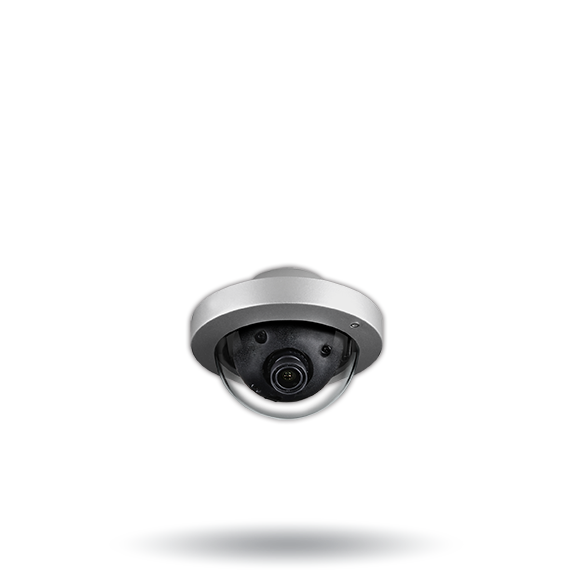

Star-Light™ UHDoC® 2.1MP/1080p micro dome with 2.8mm fixed lens
Model: DWC-MC253W-28
Find a Reseller | Request a Demo | Contact Us

Star-Light™ 2.1MP Universal HD over Coax® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI to 2.1MP/1080p and all analog signals to 960H. The micro dome cameras are IP66 and IK-10 rated and offers color ring accessories to match any application (sold separately). Star-Light™ Universal HD over Coax® cameras are engineered to work with our VMAX® A1™ Universal HD over Coax® DVRs using your existing coax infrastructure for a cost-effective, high resolution surveillance solution.

  • DWC-MC253W-28

True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
  • Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 1080p and all analog to 960H signal support
  • Star-Light™ super low light technology
  • 2.1MP 1/3” image sensor at real-time 30fps
  • 2.8mm fixed lens
  • True Wide Dynamic Range (WDR)
  • OSD control via coaxial (UTC)
  • Smart DNR™ 3D digital noise reduction
  • De-Fog™ extreme weather image compensation
  • Highlight masking exposure (HME)
  • Programmable privacy zones
  • Auto gain control (AGC)
  • Backlight compensation (BLC)
  • Auto white balance (AWB)
  • NDAA/TAA compliant
  • IP66 certified weather and tamper-resistant
  • IK-10 impact rated
  • 5 year warranty

Image sensor
2.1MP/1080p 1/3" CMOS
Active pixels
1944 (H) x 1092 (V)
Scanning system
Progressive scan
Frequency
60Hz / 50Hz
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI to 1080p and all analog to 960H signal support
Synchronization
Internal
Resolution
1920 x 1080 (1080p)
Minimum scene illumination
0.06 lux (color)
S/N ratio
55dB
Video output
HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H

LENS
Focal length
2.8mm
Lens type
Fixed lens

OPERATIONAL
Shutter mode
Auto, manual, FLC
Shutter speed
1/30-1/30,000
Backlight
On, off
Star-Light (sense-up)
Off, x2 – x32
Wide dynamic range (WDR)
True WDR, off, on
Wide dynamic range (WDR) dB
100dB
Smart DNR™ 3D digital noise reduction
Off, low, middle, high
White balance
Auto / auto-ex / preset / manual
Day / night
Auto, day (color), night (B/W)
Mirror / flip
Yes
Auto gain control
0~10
Motion detection
Yes
Privacy zones
16 programmable privacy zones
Sharpness
0 ~ 10
Gamma
0.45 ~ 0.75
De-fog
On, off

ENVIRONMENTAL
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity
10–90% RH (non–condensing)
IP rating
IP66 certified weather and tamper resistant
IK rating
IK10-rated impact resistant
Other certifications
FCC, CE, ROHS

ELECTRICAL
Power requirement
DC12V
Power consumption
DC12V: 1.7W

MECHANICAL
Material
Aluminum vandal housing, polycarbonate micro dome
Dimensions
3.15" x 2.34" (80 x 59.5mm)
Weight
0.56lbs
