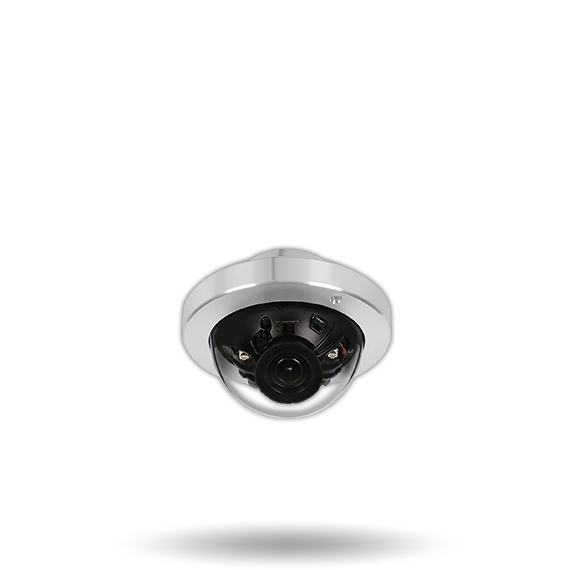

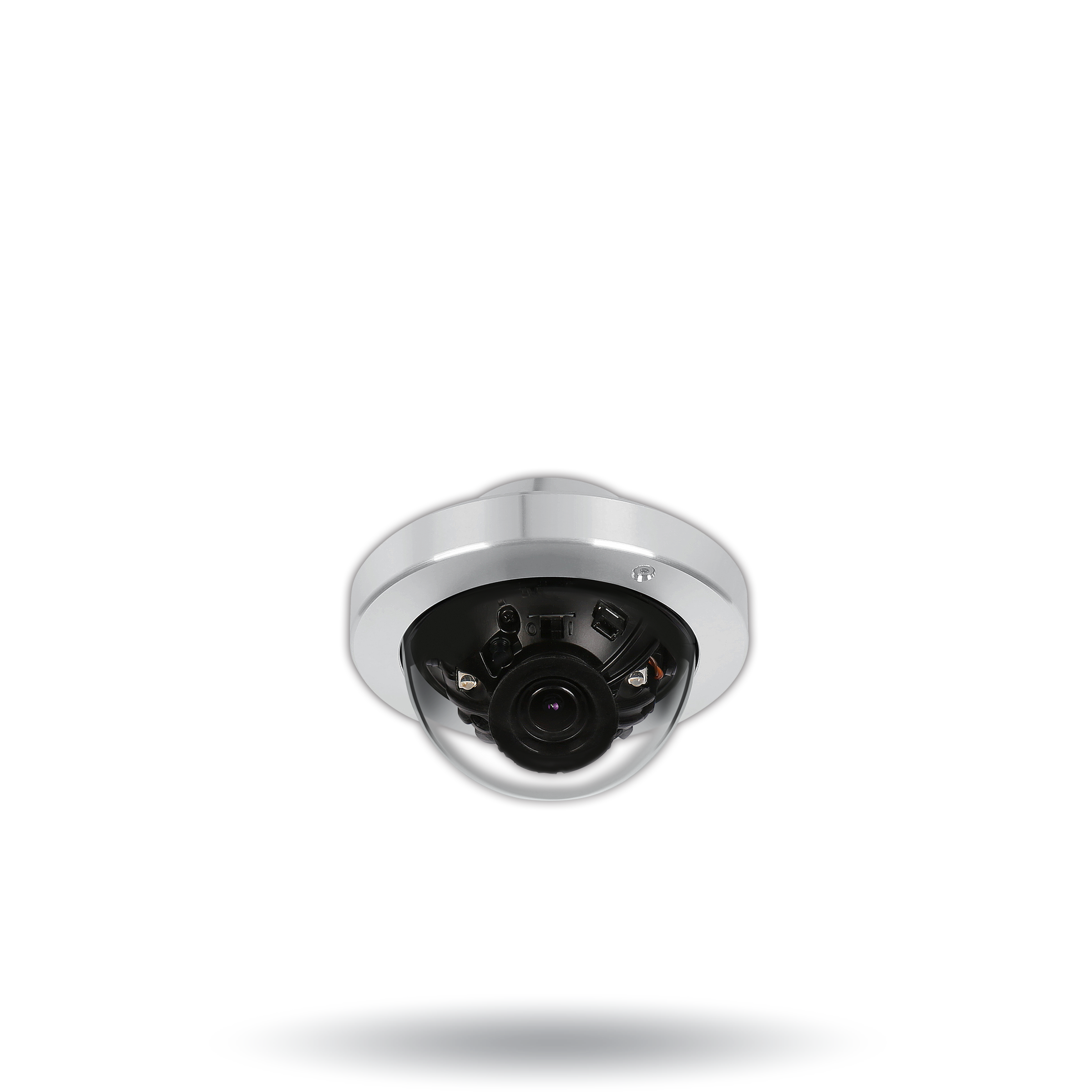

Star-Light™ UHDoC® 2.1MP/1080p micro dome with 3.6mm fixed lens and IR

Share this Product!

Model: DWC-MC253WTIR

Find a Reseller | Request a Demo | Contact Us

Star-Light™ Universal HD over Coax^® cameras deliver crystal-clear images and support real-time 30fps HD-Analog, HD-TVI, HD-CVI at 2.1MP and CVBS at 960H. The micro dome cameras are IP66 and IK-10 rated and offers color ring accessories to match any application (sold separately). Star-Light™ Universal HD over Coax^® cameras are engineered to work with our VMAX A1™ Universal HD over Coax^® DVRs using your existing Coax infrastructure for a cost-effective, high resolution surveillance solution.

True Wide Dynamic Range (WDR)

Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.

Universal HD over Coax® Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
STAR-LIGHT™ Super Low Light Technology
2.1MP 1/3" Image Sensor at Real-time 30fps
3.6mm Fixed Lens
True Wide Dynamic Range (WDR)
OSD Control Via Coaxial (UTC)
50' Smart IR™ with Intelligent Camera Sync.
Smart DNR™ 3D Digital Noise Reduction
True Day/Night Mechanical IR Cut Filter
De-Fog™ Extreme Weather Image Compensation
Highlight Masking Exposure (HME)
Easy Icon Driven OSD Menu with Built-in Joystick
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Auto White Balance (AWB)
NDAA/TAA compliant
IP66 Certified Weather and Tamper Resistant
IK-10 Impact Rated
5 Year Warranty

Image sensor	2.1MP/1080p 1/3" CMOS
Active pixels	1944 (H) x 1092 (V)
Scanning system	Progressive scan
Frequency	60Hz / 50Hz
Signal technology	Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Synchronization	Internal
Resolution	1920 x 1080 (1080p)
Minimum scene illumination	0.06 lux (color)
Minimum scene illumination	0 lux (B&W)
S/N ratio	55dB
Video output	HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
LENS
Focal length	3.6mm
Lens type	Fixed lens
IR distance	50ft range
OPERATIONAL
Shutter mode	Auto, manual, FLC
Shutter speed	1/30-1/30,000
Backlight	On, off
Star-Light (sense-up)	Off, x2 – x32
Wide dynamic range (WDR)	True WDR, off, on
Wide dynamic range (WDR) dB	100dB
Dynamic range compressor (DRC)	Off, low, middle, high
Smart DNR™ 3D digital noise reduction	Off, low, middle, high
White balance	Auto / auto-ex / preset / manual
Day / night	Auto, day (color), night (B/W)
Mirror / flip	Yes
Auto gain control	0~10
Motion detection	Yes
Privacy zones	16 programmable privacy zones
Sharpness	0 ~ 10
Gamma	0.45 ~ 0.75
De-fog	On, off
ENVIRONMENTAL
Operating temperature	-4°F ~ 122°F (-20°C ~ 50°C)
Operating humidity	10–90% RH (non–condensing)
IP rating	IP66 certified weather and tamper resistant
IK rating	IK10-rated impact resistant
Other certifications	FCC, CE, ROHS
ELECTRICAL
Power requirement	DC12V
Power consumption	DC12V (LED OFF): 1.7W
Power consumption	DC12V (LED ON): 2.9W
MECHANICAL
Material	Aluminum vandal housing, polycarbonate micro dome
Dimensions	3.15" x 2.34" (80 x 59.5mm)
Weight	0.56lbs
